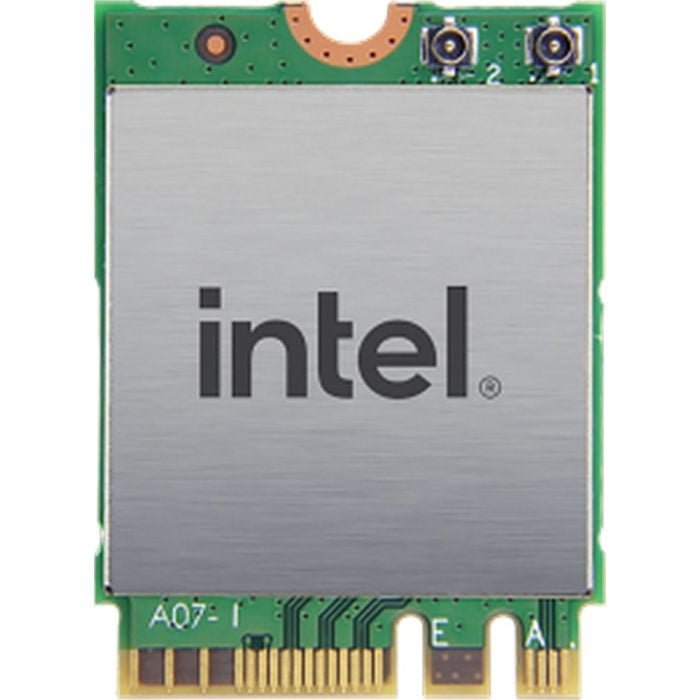

Intel Wi-Fi 6 AX200 - Netwerkadapter
M.2 2230 / M.2 1216 - Bluetooth 5.0, 802.11ax
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 3913549
22,90
Incl. 21% BTW
18,93
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
2-3 werkdagen
Raalte:
Niet voorradig
Leverancier:
99+ stuk(s) voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving
Deze netwerkadapter van Intel heeft als voorziening onder andere 2 x 2 MU-MIMO-technologie.
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0675901715744 |
| Fabrikantcode | AX200.NGWG.NV |
| Artikelnummer | 3913549 |
| Merk | INTEL |
| Link naar fabrikant | |
| Campagne | Geen |
Poorten & interfaces |
| Connectiviteitstechnologie | Draadloos |
| Hostinterface | PCI Express |
| Interface | WLAN |
Netwerk |
| Maximale overdrachtssnelheid van gegevens | 2400 Mbit/s |
| Netwerkstandaard | IEEE 802.11w,IEEE 802.11k,IEEE 802.11r,IEEE 802.11d,IEEE 802.11h,IEEE 802.11u,IEEE 802.11e,IEEE 802.11i,IEEE 802.11v,IEEE 802.11g,IEEE 802.11n,IEEE 802.11a,IEEE 802.11b,IEEE 802.11ac,IEEE 802.11ax |
| Wifi | Ja |
| Wifi-band | Dual-band (2.4 GHz / 5 GHz) |
| Wifi-standaard | Wi-Fi 6 (802.11ax) |
| Wi-Fi-standaarden | Wi-Fi 6 (802.11ax) |
| Ondersteunde beveiligingsalgoritmen | 64-bit WEP,WPS,128-bit WEP,256-bit AES,EAP-SIM,EAP-AKA,EAP-TLS,AES-CCMP,EAP-TTLS,MSCHAPv2,AES-GCMP,PEAP,128-bit AES,TKIP,WPA2,WPA3 |
| Bluetooth | Ja |
| Bluetooth-versie | 5 |
| MU-MIMO | Ja |
Design |
| Intern | Ja |
| Component voor | PC/Laptop |
| Soort antenne | 2x2 |
| Pakket afmeting | 22 x 30 x 2.4 mm |
Minimale systeemeisen |
| Compatibele besturingssystemen | Windows 10, 64-bit*|Linux* |
| Ondersteunt Windows | Windows 10 x64 |
| Ondersteunt Linux | Ja |
| Andere ondersteundende systemen | ChromeOS |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 80 °C |
Gewicht en omvang |
| Breedte | 22 |
| Diepte | 30 mm |
| Hoogte | 2.4 mm |
| Gewicht | 2.83 g |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85176990 |
Overige specificaties |
| Minimum operationele temperatuur | 0 °C |
| Maximale temperatuur (in bedrijf) | 80 °C |
| Soort aansluiting | Wi-Fi(PCIe), BT(USB) |
| Processorfamilie | Intel Wi-Fi 6 Products |
| Supported Under vPro | Ja |
| Compliance | FIPS, FISMA |
| Type product | Wireless |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G165483 |
| Status | Launched |
| URL productsamenvatting | https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf |
| Lanceringsdatum | Q2'19 |
| Productserie | Intel® Wireless Products |
| Productcodenaam | Cyclone Peak |
