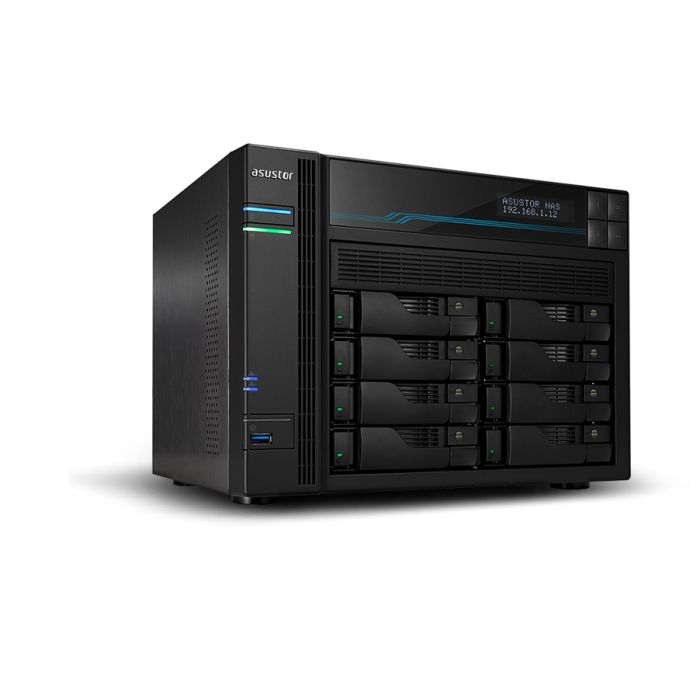

AS6508T Lockerstor 8 met dubbele Intel 10GbE M 2 SSD cache en 2 5GbE Intel Denverton gebaseerde Atom C3538 Quad Core CPU 8 GB DDR4 2133 SO DIMM 30 sneller dan DDR3 Dubbele Intel 10 Gigabit Ethernet poorten Ondersteunt tot 20 Gbps onder Link Aggregati
Artikelnummer:
4097091
1.163,95
Excl. BTW:
961,94
Excl. BTW:
Excl. BTW:
(€ 961,94 excl. 21% btw)
10+ werkdagen
Raalte:
Niet voorradig
Leverancier:
Niet voorradig
- Gratis retour bij defect binnen de garantie *
- Particulier minimaal 2 jaar garantie
- Advies nodig? Plan hier een gratis gesprek
Fabrikantcode | AS6508T |
---|---|
EAN | 4710474831210 |
Opslagdrives geïnstalleerd | Nee |
Aantal storage drives ondersteund | 8 |
Ondersteunde types opslag-drives | HDD & SSD |
RAID support | Ja |
Processorfamilie | Intel Atom® |
Intern geheugen | 8 GB |
Bekijk alle specificaties
Productspecificaties
Productspecificaties
Algemeen |
|
---|---|
Merk | ASUSTOR |
Artikelnummer | 4097091 |
Fabrikantcode | AS6508T |
EAN | 4710474831210 |
Opslagmedia |
Ondersteunde opslagstationinterfaces | SATA III |
Opslagschijf afmetingen ondersteund | 2.5 ",3.5 " |
Maximaal ondersteunde opslagcapaciteit | 128 TB |
Aantal M.2 (M & B)-sleuven | 2 |
RAID support | Ja |
Soorten RAID | 0,1,5,6,10,JBOD |
Online RAID-migratie | Ja |
Ondersteunde bestandsystemen | BTRFS,FAT32,HFS+,NTFS,exFAT,ext3,ext4 |
Opslagdrives geïnstalleerd | Nee |
Aantal storage drives ondersteund | 8 |
Geïnstalleerde opslag-drive | Nee |
Ondersteunde types opslag-drives | HDD & SSD |
Processor |
Processorfabrikant | Intel |
Processorfamilie | Intel Atom® |
Processormodel | C3538 |
Frequentie van processor | 2.1 GHz |
Maximale turbofrequentie van processor | 2.1 GHz |
Aantal processorkernen | 4 |
Processor aantal threads | 4 |
Processor cache | 8 MB |
CPU configuratie (max) | 1 |
PCI Express slots versie | 3.0 |
Maximaal intern geheugen ondersteund door processor | 256 GB |
Conflictvrije processor | Ja |
Processor speciale functies |
Ingebouwde opties beschikbaar | Ja |
Execute Disable Bit | Ja |
Intel® QuickAssist-technologie | Ja |
Intel® Veilig opstarten | Ja |
Versie Intel® Secure Boot Technology | 1,00 |
Versie Intel® Secure Key Technology | 1,00 |
Intel® Virtualization Technology (VT-x) | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® AES New Instructions (Intel® AES-NI) | Ja |
Intel® Hyper Threading Technology (Intel® HT Technology) | Nee |
Intel® OS Guard | Ja |
Intel® Secure Key | Ja |
Intel® Turbo Boost Technology | Nee |
Maximaal aantal PCI Express-lijnen | 12 |
Geheugentypen ondersteund door processor | DDR4-SDRAM |
Technische details |
Code geharmoniseerd systeem (HS) | 84714100 |
Geheugen |
Intern geheugentype | DDR4 |
Kloksnelheid geheugen | 2133 MHz |
Ondersteund maximum RAM | 32 GB |
Geheugenslots | 2 |
Intern geheugen | 8 GB |
Geheugen form factor | SO-DIMM |
Flash memory | 4 MB |
Netwerk |
Ethernet LAN | Ja |
Ethernet LAN, data-overdrachtsnelheden | 2500 Mbit/s,10000 Mbit/s |
Ondersteunde datasnelheid Ethernet LAN (max) | 10000 Mbit/s |
Wifi | Nee |
Jumbo Frames ondersteuning | Ja |
iSCSI support | Ja |
Wake-on-LAN | Ja |
Ondersteunde netwerkprotocollen | TCP/IP (IPv4 & IPv6), CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP, TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP |
Verbindingsaggregatie | Ja |
Onbalanscontrolesysteem | Ja |
Dynamic DNS (DDNS) | Ja |
Poorten & interfaces |
USB-poort | Ja |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
Aantal Ethernet LAN (RJ-45)-poorten | 4 |
Design |
Type behuizing | Tower |
Type koeling | Actief |
Kleur van het product | Zwart |
Aantal ventilatoren | 2 ventilator(en) |
Ventilator diameter | 120 mm |
Ingebouwd display | Ja |
Type beeldscherm | LCD |
Prestatie |
Soort | NAS |
Apparaatklasse | Kleine & middelgrote bedrijven |
Backup-functie | Ja |
Back-up-eigenschappen | Cloud,iSCSI LUN |
Ondersteunt meerdere talen | Ja |
Geluidsniveau | 22 dB |
Snap shot | Ja |
Web-gebaseerd management | Ja |
Toegangsrechtenbeheer voor gedeelde mappen | Ja |
Ondersteunde beveiligingsalgoritmen | 256-bit AES,HTTPS,SSH,SSL/TLS |
Access Control List (ACL) | Ja |
Ingebouwde UPnPâ„¢ AV -mediaserver | Ja |
Ingebouwde iTunes-server | Ja |
Ondersteunde browser | Internet Explore 11+, FireFox, Chrome, Safari, Microsoft Edge |
Systeemlog | Ja |
S.M.A.R.T. support | Ja |
Software |
Inclusief besturingssysteem | ADM |
Operating systeem versie | 3,1 |
Ondersteunt Windows | Windows 10,Windows 7,Windows 8,Windows Vista,Windows XP |
Ondersteunt Linux | Ja |
Ondersteunt Mac-besturingssysteem | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
Ondersteunde server operating systems | Windows Server 2003,Windows Server 2008,Windows Server 2012 |
Energie |
Vermogenstoevoer locatie | Ingebouwd |
Capaciteit voedingsunit (PSU) | 250 W |
Aantal voedingen | 1 |
Stroomverbruik (typisch) | 66.9 W |
Elektriciteitsverbruik (HDD-stand-by) | 37.2 W |
AC-ingangsspanning | 100 - 240 V |
Gewicht en omvang |
Breedte | 293 mm |
Diepte | 230 mm |
Hoogte | 215.5 mm |
Gewicht | 6200 g |
Inhoud van de verpakking |
Meegeleverde kabels | AC,LAN (RJ-45) |
Snelle installatiehandleiding | Ja |
Aantal schroeven | 66 |
Eisen aan de omgeving |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
Certificaten |
Certificering | FCC, CE, VCCI, BSMI, C-TICK |
Overige specificaties |
ARK ID processor | 97929 |
