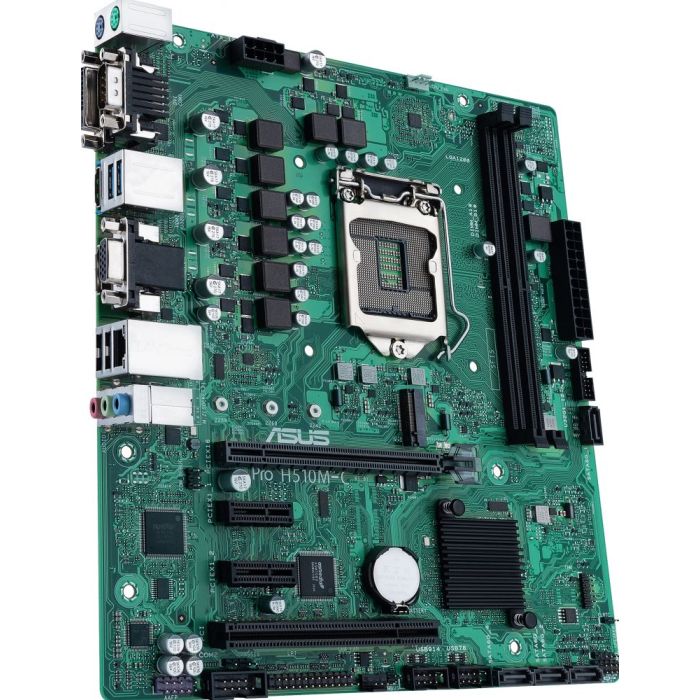

ASUS Pro H510M-CCSM - Moederbord
micro ATX - LGA1200-sokkel - H510 chipset - USB 3.2 Gen 1 - Gigabit LAN - interne afbeeldingen (CPU vereist) - HD Audio (8-kanaals)
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 4494121
101,39
Incl. 21% BTW
83,79
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
Raalte:
Niet voorradig
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving
ASUS PRO H510M-C/CSM. Processorfabrikant: Intel, Processor socket: LGA 1200 (Socket H5), Compatibele processors: Intel® Celeron®, Intel® Pentium® G. Ondersteunde geheugen types: DDR4-SDRAM, Maximum intern geheugen: 64 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III. LAN controller: Intel® I219-LM. Component voor: PC, Moederbord form factor: micro ATX, Moederbord chipset familie: Intel
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 4711081122494 |
| Fabrikantcode | 90MB17K0-M0EAYC |
| Artikelnummer | 4494121 |
| Merk | ASUS |
| Link naar fabrikant |
Processor |
| Processorfabrikant | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatibele processors | Intel® Celeron®,Intel® Pentium® G |
Geheugen |
| Ondersteunde geheugen types | DDR4-SDRAM |
| Aantal geheugenslots | 2 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| ECC-compatibiliteit | Niet-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933 MHz |
| Maximum intern geheugen | 64 GB |
| Niet gebufferd geheugen | Ja |
Opslag-controllers |
| Ondersteunde opslagstationinterfaces | M.2, SATA III |
Grafisch |
| Discrete grafische ondersteuning | Ja |
Interne aansluitingen |
| USB 2.0 aansluitingen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
| Aantal SATA III connectors | 4 |
| Audioconnector | Ja |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| Voorpaneel-connector | Ja |
| Aansluiting voor CPU koeler | Ja |
| Aansluitingen voor behuizingsventilatoren | 2 |
| TPM connector | Ja |
| 12V vermogen-connector | Ja |
Aansluitingen achterzijde |
| Aantal USB 2.0-poorten | 2 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| PS/2 poort(en) | 2 |
| VGA (D-Sub)poort(en) | 1 |
| Aantal HDMI-poorten | 1 |
| DVI-D poorten | 1 |
| Aantal DisplayPorts | 1 |
| DisplayPort versie | 1.4 |
| Aantal COM-poorten | 1 |
Netwerk |
| Ethernet LAN | Ja |
| LAN controller | Intel® I219-LM |
| Wifi | Nee |
Kenmerken |
| Component voor | PC |
| Moederbord form factor | micro ATX |
| Moederbord chipset familie | Intel |
| Chipset moederbord | Intel H510 |
| Audiochip | Realtek ALC897 |
| Audio-uitgangskanalen | 7.1 kanalen |
| Ondersteunt Windows | Windows 10 |
Uitbreidingsmodules |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) sleuven | 1 |
| PCI-slots | 1 |
BIOS |
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 128 Mbit |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 84733020 |
Technische details |
| Gewicht | 634 g |
| Hoogte | 51 mm |
Gewicht en omvang |
| Breedte | 244 |
| Diepte | 216 mm |
