Bluewalker USV Powerwalke VFI 20K TAP 3/3 BX 18000W Onl
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 5052853
3.808,45
Incl. 21% BTW
3.147,48
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
429 Too Many Requests
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving

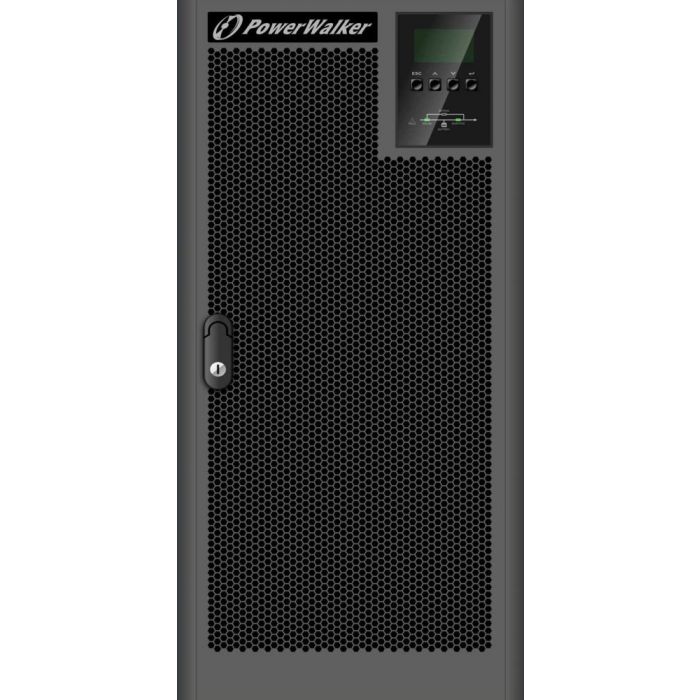

PowerWalker VFI 20k TAP 3/3 BX. UPS-topologie: Dubbele conversie (online), Output power capacity: 20 kVA, Uitgangsvermogen: 18000 W. Stopcontacttypes: Eindstation, Stekker: Eindstation, USB-poorttype: USB Type-B. Accu/Batterij voltage: 12 V. Breedte: 420 mm, Diepte: 715 mm, Hoogte: 900 mm. Gewicht verpakking: 87,5 kg
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 4260074983883 |
| Fabrikantcode | 10122234 |
| Artikelnummer | 5052853 |
| Merk | BLUEWALKER |
| Link naar fabrikant |
Kenmerken |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 20 kVA |
| Uitgangsvermogen | 18000 W |
| Golfvorm | Zuivere sinus |
| Ingang operation voltage (min) | 201 V |
| Ingang operation voltage (max) | 478 V |
| Frequentie | 42/70 Hz |
| Uitgang operation voltage (min) | 380 V |
| Uitgang operation voltage (max) | 415 V |
| Uitgangsspanningsregeling | 1 procent |
| Responstijd | 0 ms |
| Aantal input fases | 3 |
| Aantal output fases | 3 |
| Efficiëntie (On-line modus) | 94 procent |
| Output vermogensfactor | 0.9 |
| Crest factor | 3:1 |
| Output voltage THD | 2 procent |
| Input stroom THD | 3 procent |
| Geluidsniveau | 55 dB |
| Type stroombron | AC |
Poorten & interfaces |
| Stopcontacttypes | Eindstation |
| Stekker | Eindstation |
| USB-poort | Ja |
| USB-poorttype | USB Type-B |
| RS-232 port | 1 |
| SmartSlot | Ja |
Accu/Batterij |
| Accu/Batterij voltage | 12 V |
| Ondersteund aantal accu's/batterijen | 32 |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
Gewicht en omvang |
| Breedte | 420 |
| Diepte | 715 mm |
| Hoogte | 900 mm |
| Gewicht | 61500 g |
Verpakking |
| Gewicht verpakking | 87500 g |
