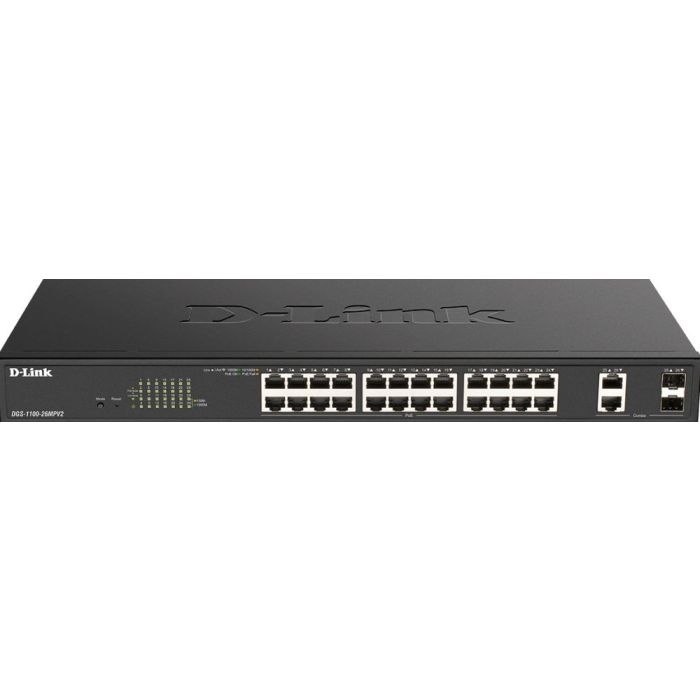

D-Link DGS 1100-26MPV2 - Switch
intelligent - 24 x 101001000 (PoE+) + 2 x Gigabit SFP-combinatie - rack-uitvoering - PoE+ (370 W)
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 4364898
451,21
Incl. 21% BTW
372,90
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
2-3 werkdagen
Raalte:
Niet voorradig
Leverancier:
2 stuk(s) voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0790069453342 |
| Fabrikantcode | DGS-1100-26MPV2 |
| Artikelnummer | 4364898 |
| Merk | D-LINK |
| Link naar fabrikant |
Beheerfuncties |
| Switch type | Managed |
| Switch-laag | L2 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| ARP-inspectie | Ja |
| MIB-ondersteuning | • RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention |
Poorten & interfaces |
| Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal Combo SFP-poorten | 2 |
Netwerk |
| Netwerkstandaard | IEEE 802.3at,IEEE 802.3af,IEEE 802.1D,IEEE 802.1w |
| Koperen ethernetbekabelingstechnologie | 10GBASE-T,1000BASE-T |
| Port mirroring | Ja |
| Full duplex | Ja |
| Half-duplex | Ja |
| Datastroombeheer | Ja |
| Spanning tree protocol | Ja |
| Verbindingsaggregatie | Ja |
| Auto MDI/MDI-X | Ja |
| Head-of-line (HOL) blocking | Ja |
| Broadcast stormbeheer | Ja |
| Rate limiting | Ja |
| Auto-negotiation | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Voice VLAN,Port-based VLAN |
Data-uitwisseling |
| MAC-adrestabel | 8000 entries |
| Switchingcapaciteit | 52 Gbit/s |
| Verzending snelheid | 38.69 Mpps |
| Jumbo Frames ondersteuning | Ja |
Beveiliging |
| DHCP-functies | DHCP client |
| IGMP snooping | Ja |
| Statische poort beveiliging | Ja |
| Ondersteunde beveiligingsalgoritmen | SSL/TLS |
| MAC adres filtering | Ja |
Multicast-functies |
| Multicast-ondersteuning | Ja |
| IPv4-multicast-vermeldingen | 1 |
| IPv6-multicast-vermeldingen | 1 |
| Aantal gefilterde multicast-groepen | 1 |
Protocollen |
| IPv4- & IPv6-functies | IPv4 FIB |
Design |
| Rack-montage | Ja |
| Kleur van het product | Zwart |
| Materiaal behuizing | Metaal |
Prestatie |
| Flash memory | 16 MB |
| Geluidsniveau | 50.5 dB |
| Fanloos | Ja |
Energie |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Vermogensverbruik (max) | 454.1 W |
Power over Ethernet (PoE) |
| Totaal Power over Ethernet (PoE)-budget | 370 W |
| Power over Ethernet (PoE) | Ja |
| Hoeveelheid Power over Ethernet (PoE) ports | 24 |
| Aantal Power over Ethernet plus (PoE +)-poorten | 24 |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | -10 - 50 °C |
| Temperatuur bij opslag | -40 - 70 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Warmtedissipatie | 287 BTU/h |
Gewicht en omvang |
| Breedte | 440 |
| Diepte | 208 mm |
| Hoogte | 44 mm |
| Gewicht | 2800 g |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85176990 |
