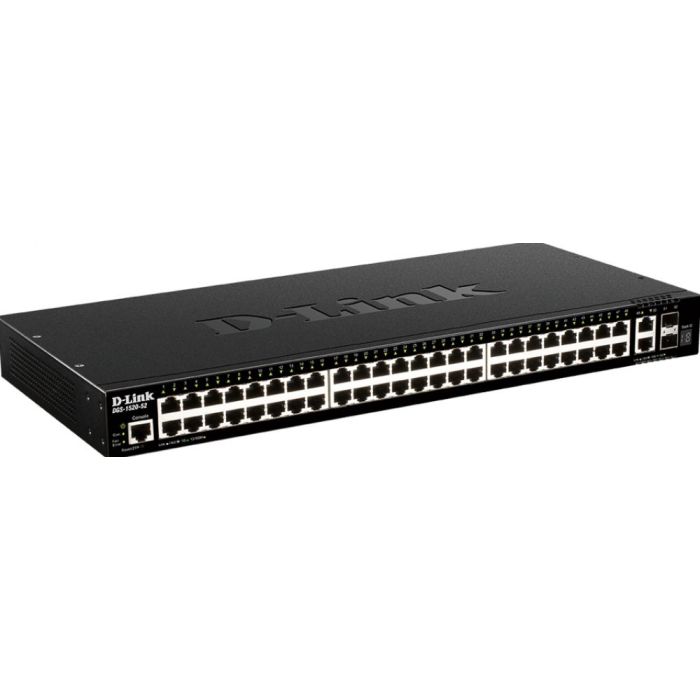

D-Link DGS 1520-52 - Switch
L3 - intelligent - 48 x 101001000 + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+ - rack-uitvoering
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 5621316
1.028,50
Incl. 21% BTW
850,-
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
2-3 werkdagen
429 Too Many Requests
Leverancier:
14 stuk(s) voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving
D-Link DGS-1520-52/E. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: 10G Ethernet (100/1000/10000), Aantal basis-switching RJ-45 Ethernet-poorten: 50. MAC-adrestabel: 16384 entries, Switchingcapaciteit: 176 Gbit/s. Rack-montage, Vormfactor: 1U
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0790069472039 |
| Fabrikantcode | DGS-1520-52/E |
| Artikelnummer | 5621316 |
| Merk | D-LINK |
| Link naar fabrikant |
Beheerfuncties |
| Switch type | Managed |
| Switch-laag | L3 |
| Web-gebaseerd management | Ja |
Poorten & interfaces |
| Aantal basis-switching RJ-45 Ethernet-poorten | 50 |
| Type basis-switching RJ-45 Ethernet-poorten | 10G Ethernet (100/1000/10000) |
| Aantal Gigabit Ethernet (koper)-poorten | 48 |
| Aantal 10G Ethernet (koper)poorten | 2 |
| Aantal moduleslots SPF+ | 2 |
| Fibre channel-poorten | 2 |
| Vezel-optische connector | SFP+ |
Netwerk |
| 10G support | Ja |
| Datastroombeheer | Ja |
| Spanning tree protocol | Ja |
| Verbindingsaggregatie | Ja |
| Auto MDI/MDI-X | Ja |
| Head-of-line (HOL) blocking | Ja |
| VLAN=ondersteuning | Ja |
Data-uitwisseling |
| MAC-adrestabel | 16384 entries |
| Switchingcapaciteit | 176 Gbit/s |
| Verzending snelheid | 130.95 Mpps |
| Store-and-forward | Ja |
| Statische route | Ja |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 12288 |
Beveiliging |
| IGMP snooping | Ja |
| BPDU filtering / bescherming | Ja |
| Bescherming lus | Ja |
Protocollen |
| GARP VLAN Registratieprotocol (GVRP) | Ja |
| Routing protocols | OSPF,RIPng,VRRP,RIP |
Design |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
Prestatie |
| Physical stacking (units) | 8 |
| Virtual stacking (units) | 32 |
| Geluidsniveau | 56.8 dB |
| Mean time between failures (MTBF) | 364888 uur |
Energie |
| Stroombron | AC |
| Redundante voeding | Ja |
| AC-ingangsspanning | 100 - 240 V |
| Vermogensverbruik (max) | 51.2 W |
Power over Ethernet (PoE) |
| Power over Ethernet (PoE) | Nee |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | -5 - 50 °C |
| Temperatuur bij opslag | -40 - 70 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Warmtedissipatie | 174.6 BTU/h |
Gewicht en omvang |
| Breedte | 441 |
| Diepte | 207.4 mm |
| Hoogte | 44 mm |
| Gewicht | 2780 g |
Duurzaamheid |
| Naleving van duurzaamheid | Ja |
Certificaten |
| Certificaten van naleving | CE,Federal Communications Commission (FCC),BSMI |
