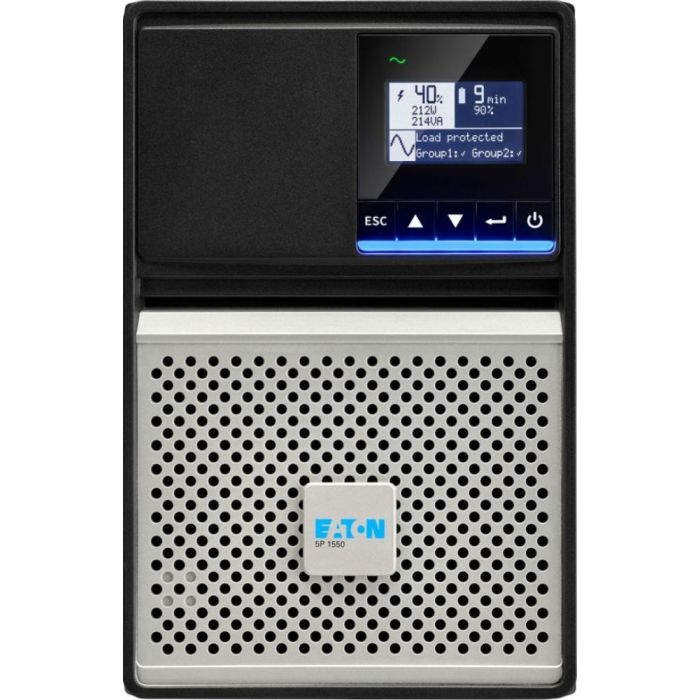

Eaton 5P 1550i - Gen 2
UPS - toren - 200208220230240 Volt wisselstroom V - 1350 Watt - 1550 VA - 1-fase - 9 ampère-uur - RS-232, USB - uitgangen: 8 - zwartzilver
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 7922608
921,37
Incl. 21% BTW
761,46
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
Raalte:
Niet voorradig
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving
Eaton 5P Gen2. UPS-topologie: Line-interactive, Uitgangsvermogen: 1350 W, Golfvorm: Sinus. Stopcontacttypes: C13 stekker, Stekker: C14 stekker, Aantal AC uitgangen: 8 AC-uitgang(en). Batterijtechnologie: Lood-zuur, Batterij capaciteit: 9 Ah, Accu/Batterij voltage: 12 V. Vormfactor: Tower, Kleur van het product: Zwart, Zilver, Type beeldscherm: LCD. Certificaten van naleving: Elektromagnetische compatibiliteit (EMC), Laagspanningsrichtlijn (LVD), RoHS, WEEE, Certificering: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 3553340710285 |
| Fabrikantcode | 5P1550IG2 |
| Artikelnummer | 7922608 |
| Merk | EATON |
| Link naar fabrikant |
Kenmerken |
| UPS-topologie | Line-interactive |
| Uitgangsvermogen | 1350 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 160 V |
| Ingang operation voltage (max) | 294 V |
| Frequentie | 47/70 Hz |
| Uitgang operation voltage (max) | 230 V |
| Output frequentie | 50/60 Hz |
| Aantal input fases | 1 |
| Aantal output fases | 1 |
| Efficientie | 98.2 procent |
| Geluidsniveau | 35 dB |
| Automatische uitschakeling | Ja |
Poorten & interfaces |
| Stopcontacttypes | C13 stekker |
| Stekker | C14 stekker |
| Aantal AC uitgangen | 8 AC-uitgang(en) |
| USB-poort | Ja |
| Seriële interface | Ja |
| Soort serieële aansluiting | RS-232 |
| Seriële poort(en) | 1 |
Accu/Batterij |
| Batterijtechnologie | Lood-zuur |
| Batterij capaciteit | 9 Ah |
| Accu/Batterij voltage | 12 V |
| Ondersteund aantal accu's/batterijen | 3 |
Design |
| Vormfactor | Tower |
| Kleur van het product | Zwart, Zilver |
| Type beeldscherm | LCD |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 90 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
Inhoud van de verpakking |
| Snelle installatiehandleiding | Ja |
Certificaten |
| Certificaten van naleving | RoHS |
| Certificering | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
Gewicht en omvang |
| Breedte | 150 |
| Diepte | 445 mm |
| Hoogte | 233 mm |
| Gewicht | 15100 g |
