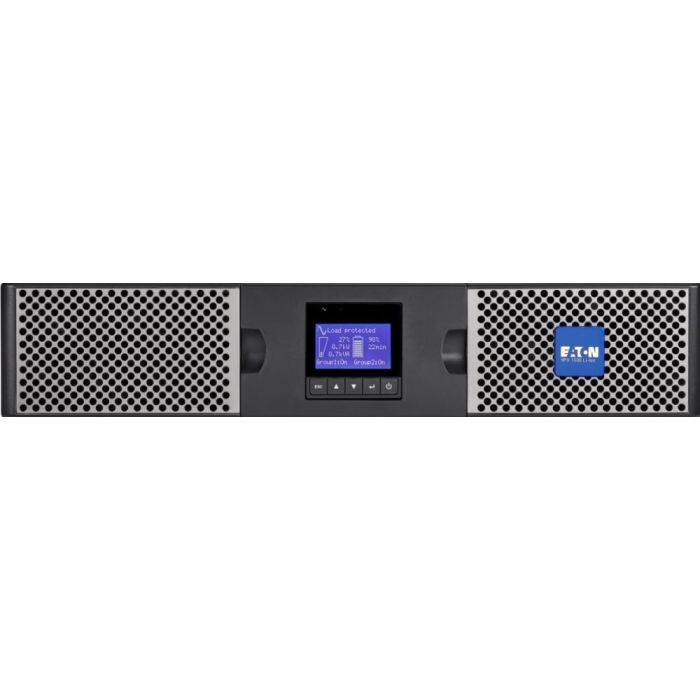

Eaton 9PX 1500i RT2U - UPS (rack-monteerbaar extern)
200208220230240 Volt wisselstroom V - 1500 Watt - 1500 VA - 1-fase - RS-232, USB - uitgangen: 8 - PFC - 2U - 19" - zwartzilver
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 4717375
2.924,88
Incl. 21% BTW
2.417,26
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
2-3 werkdagen
Raalte:
Niet voorradig
Leverancier:
1 stuk(s) voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0743172105479 |
| Fabrikantcode | 9PX1500IRT2U-L |
| Artikelnummer | 4717375 |
| Merk | EATON |
| Link naar fabrikant |
Kenmerken |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 1.5 kVA |
| Uitgangsvermogen | 1500 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 176 V |
| Ingang operation voltage (max) | 276 V |
| Frequentie | 40/70 Hz |
| Uitgang operation voltage (min) | 200 V |
| Uitgang operation voltage (max) | 240 V |
| Output frequentie | 50/60 Hz |
| Aantal input fases | 1 |
| Aantal output fases | 1 |
| Efficientie | 92.5 procent |
| Input vermogensfactor | 0.99 |
| Output vermogensfactor | 1 |
| Output voltage THD | 3 procent |
| Geluidsniveau | 35 dB |
| Automatisch uitschakelen | Ja |
Poorten & interfaces |
| Stopcontacttypes | C13 stekker |
| Stekker | C14 stekker |
| Aantal AC uitgangen | 8 AC-uitgang(en) |
| USB-poort | Ja |
| Aantal USB 2.0-poorten | 1 |
| Seriële interface | Ja |
| Soort serieële aansluiting | RS-232 |
| Seriële poort(en) | 1 |
Accu/Batterij |
| Batterijtechnologie | Lithium-Ion (Li-Ion) |
| Hot-swap batterij | Ja |
Design |
| Vormfactor | Rackmontage/toren |
| Kleur van het product | Zwart, Zilver |
| Rackcapaciteit | 2U |
| Type beeldscherm | LCD |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 96 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
Inhoud van de verpakking |
| Rekbevestigingspakket | Ja |
| Meegeleverde kabels | Uitgangsstroomkabel, Serie |
| Snelle installatiehandleiding | Ja |
Safety regulation & standards |
| Veiligheid | IEC/EN 62040-1, UL 1778, CSA 22.2 |
Duurzaamheid |
| Duurzaamheidscertificaten | ENERGY STAR |
Certificaten |
| Certificering | IEC/EN 62040-2, FCC, CISPR22, CE, CB, TUV, cULus, EAC, RCM, KC |
Gewicht en omvang |
| Breedte | 440 |
| Diepte | 450 mm |
| Hoogte | 86.5 mm |
| Gewicht | 18900 g |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85078000 |
Overige specificaties |
| Bypass | Internal |
