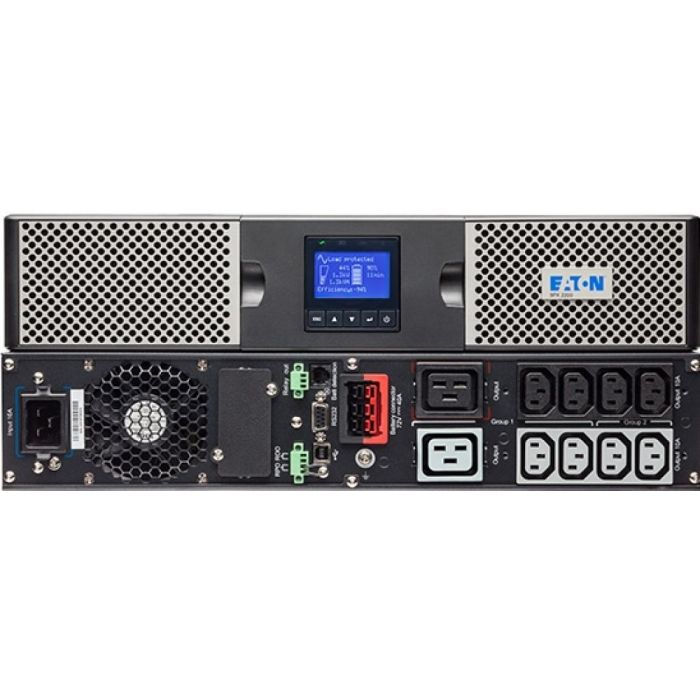

Eaton 9PX 2200i RT2U - UPS (rack-monteerbaar extern)
200208220230240 Volt wisselstroom V - 2200 Watt - 2200 VA - 1-fase - RS-232, USB - uitgangen: 10 - PFC - 2U
Artikelnummer:
936059
2.099,00
Excl. BTW:
1.734,71
Excl. BTW:
Excl. BTW:
(€ 1.734,71 excl. 21% btw)
2-3 werkdagen
Raalte:
Niet voorradig
Leverancier:
4 stuk(s) voorradig
- Gratis retour bij defect binnen de garantie *
- Particulier minimaal 2 jaar garantie
- Advies nodig? Plan hier een gratis gesprek
Fabrikantcode | 9PX2200IRT2U |
---|---|
EAN | 743172081360 |
UPS-topologie | Dubbele conversie (online) |
Output power capacity | 2.2 kVA |
Uitgangsvermogen | 2200 W |
Golfvorm | Zuivere sinus |
Frequentie | 40/70 Hz |
Vormfactor | Rackmontage/toren |
Bekijk alle specificaties
Productspecificaties
Productspecificaties
Algemeen |
|
---|---|
Merk | EATON |
Artikelnummer | 936059 |
Fabrikantcode | 9PX2200IRT2U |
EAN | 743172081360 |
Kenmerken |
UPS-topologie | Dubbele conversie (online) |
Output power capacity | 2.2 kVA |
Uitgangsvermogen | 2200 W |
Golfvorm | Zuivere sinus |
Ingang operation voltage (min) | 176 V |
Ingang operation voltage (max) | 276 V |
Frequentie | 40/70 Hz |
Uitgang operation voltage (min) | 200 V |
Uitgang operation voltage (max) | 240 V |
Output frequentie | 50/60 Hz |
Aantal input fases | 1 |
Efficientie | 93.5 procent |
Power factor | 1 |
Geluidsniveau | 40 dB |
Poorten & interfaces |
Stopcontacttypes | C13 stekker,C19 stekker |
Stekker | C20 stekker |
Aantal AC uitgangen | 10 AC-uitgang(en) |
USB-poort | Ja |
Aantal USB 2.0-poorten | 1 |
RS-232 port | 1 |
Accu/Batterij |
Batterijtechnologie | Sealed Lead Acid (VRLA) |
Typische backup tijd op halve lading | 10 min |
Hot-swap batterij | Ja |
Automatische batterij test | Ja |
Design |
Vormfactor | Rackmontage/toren |
Rackcapaciteit | 2U |
Kleur van het product | Zwart |
Type beeldscherm | LCD |
LED-indicatoren | Ja |
Beeldscherm | LCD |
Veiligheid | IEC/EN 62040-1, UL 1778, CSA 22.2 |
Certificering | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
Eisen aan de omgeving |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Technische details |
Duurzaamheidscertificaten | ENERGY STAR |
Code geharmoniseerd systeem (HS) | 85078000 |
Gewicht en omvang |
Breedte | 440 mm |
Diepte | 605 mm |
Hoogte | 86.5 mm |
Gewicht | 25000 g |
Verpakking |
Rekbevestigingspakket | Ja |
Beheerskaart inbegrepen | Nee |
Meegeleverde software | Intelligent Power Software suite |
Logistieke gegevens |
Code geharmoniseerd systeem (HS) | 85078000 |
Overige specificaties |
Netspanning, in bedrijf | 230 V |
Nominale input voltage | 230 V |
