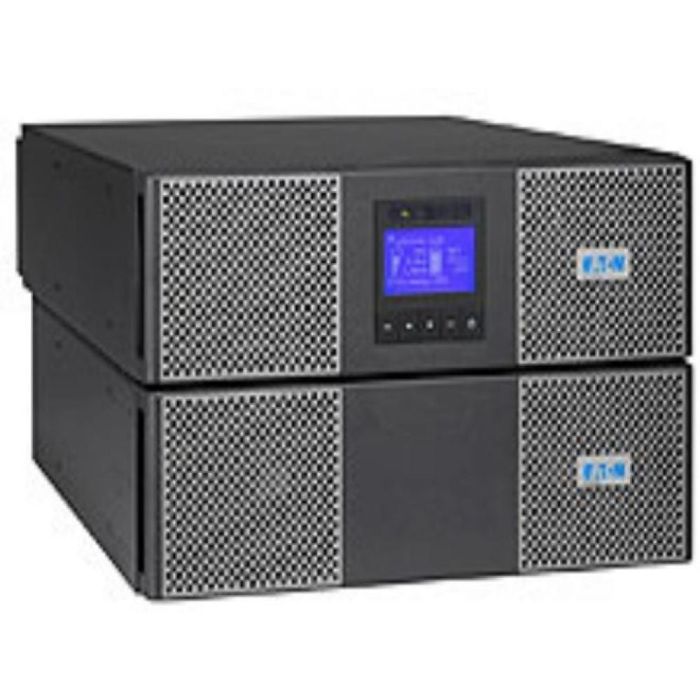

Eaton 9PX 9PX8KIRTNBP31 - UPS (rack-monteerbaar extern)
380400415 Volt wisselstroom V - 7200 Watt - 8000 VA - Ethernet 101001000, RS-232, USB - PFC - 6U - 19"
Artikelnummer: 666946
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 7431720452634 |
| Fabrikantcode | 9PX8KIRTNBP31 |
| Artikelnummer | 666946 |
| Merk | EATON |
| Link naar fabrikant |
Kenmerken |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 8 kVA |
| Uitgangsvermogen | 7200 W |
| Golfvorm | Zuivere sinus |
| Ingang operation voltage (min) | 305 V |
| Ingang operation voltage (max) | 480 V |
| Frequentie | 40/70 Hz |
| Uitgang operation voltage (min) | 200 V |
| Uitgang operation voltage (max) | 240 V |
| Output frequentie | 50/60 Hz |
| Aantal input fases | 3 |
| Efficientie | 0.95 procent |
| Power factor | 0.9 |
| Output voltage THD | 2 procent |
| Input stroom THD | 5 procent |
| Geluidsniveau | 48 dB |
Poorten & interfaces |
| Stopcontacttypes | C19 stekker,Eindstation |
| Stekker | Eindstation |
| Aantal AC uitgangen | 5 AC-uitgang(en) |
| USB-poort | Ja |
| Aantal USB 2.0-poorten | 1 |
| RS-232 port | 1 |
| Seriële poort(en) | 1 |
Accu/Batterij |
| Typische backup tijd op halve lading | 20 min |
| Hot-swap batterij | Ja |
| Automatische batterij test | Ja |
Design |
| Vormfactor | Rackmontage/toren |
| Kleur van het product | Zwart |
| Rackcapaciteit | 6U |
| Type koeling | Actief |
| Ingebouwde ventilator | Ja |
| Type beeldscherm | LCD |
| LED-indicatoren | Ja |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Inhoud van de verpakking |
| Rekbevestigingspakket | Ja |
Safety regulation & standards |
| Veiligheid | IEC/EN 62040-1 |
[{value: Duurzaamheid, language: nl}] |
| Duurzaamheidscertificaten | ENERGY STAR |
Certificaten |
| Certificering | IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV) |
Gewicht en omvang |
| Breedte | 440 |
| Diepte | 700 mm |
| Hoogte | 260 mm |
| Gewicht | 88000 g |
Verpakking |
| Beheerskaart inbegrepen | Ja |
| Meegeleverde software | Intelligent Power Software suite |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85078000 |
Overige specificaties |
| Nominale input voltage | 400 V |
| Netspanning, in bedrijf | 230 V |
