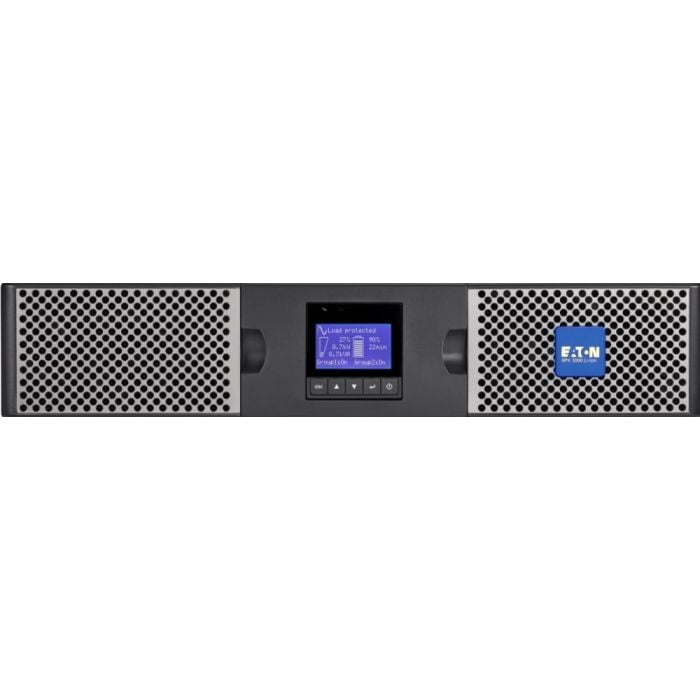

Eaton 9PX Lithium-ion - Netpack
UPS (rack-monteerbaar extern) - 200208220230240 Volt wisselstroom V - 2400 Watt - 3000 VA - 1-fase - RS-232, USB, Ethernet 101001000 - uitgangen: 10 - 2U - 19" - zwart, zilver
Artikelnummer:
4571653
6.182,73
Excl. BTW:
5.109,69
Excl. BTW:
Excl. BTW:
(€ 5.109,69 excl. 21% btw)
10+ werkdagen
Raalte:
Niet voorradig
Leverancier:
Niet voorradig
- Gratis retour bij defect binnen de garantie *
- Particulier minimaal 2 jaar garantie
- Advies nodig? Plan hier een gratis gesprek
Fabrikantcode | 9PX3000IRTN-L |
---|---|
EAN | 7431721058514 |
UPS-topologie | Dubbele conversie (online) |
Output power capacity | 3 kVA |
Uitgangsvermogen | 2400 W |
Golfvorm | Sinus |
Frequentie | 40/70 Hz |
Vormfactor | Rackmontage/toren |
Bekijk alle specificaties
Productspecificaties
Productspecificaties
Algemeen |
|
---|---|
Merk | EATON |
Artikelnummer | 4571653 |
Fabrikantcode | 9PX3000IRTN-L |
EAN | 7431721058514 |
Kenmerken |
UPS-topologie | Dubbele conversie (online) |
Output power capacity | 3 kVA |
Uitgangsvermogen | 2400 W |
Golfvorm | Sinus |
Ingang operation voltage (min) | 176 V |
Ingang operation voltage (max) | 276 V |
Frequentie | 40/70 Hz |
Uitgang operation voltage (min) | 200 V |
Uitgang operation voltage (max) | 240 V |
Output frequentie | 50/60 Hz |
Aantal input fases | 1 |
Aantal output fases | 1 |
Efficientie | 94 procent |
Input vermogensfactor | 0 |
Output vermogensfactor | 1 |
Geluidsniveau | 40 dB |
Stroomspanning bescherming | Batterij-ontlading |
Poorten & interfaces |
Stopcontacttypes | C13 stekker,C19 stekker |
Stekker | C20 stekker |
Aantal AC uitgangen | 10 AC-uitgang(en) |
USB-poort | Ja |
Aantal USB 2.0-poorten | 1 |
USB-poorttype | USB Type-B |
Seriële interface | Ja |
Soort serieële aansluiting | RS-232 |
RS-232 port | 1 |
Accu/Batterij |
Batterijtechnologie | Lithium-Ion (Li-Ion) |
Typische backup tijd op volledige lading | 10 min |
Hot-swap batterij | Ja |
Automatische batterij test | Ja |
Design |
Vormfactor | Rackmontage/toren |
Rackcapaciteit | 2U |
Kleur van het product | Zwart, Zilver |
Type beeldscherm | LCD |
LED-indicatoren | Ja |
Veiligheid | IEC/EN 62040-1, UL 1778, CSA 22.2 |
Certificering | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
Eisen aan de omgeving |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Relatieve vochtigheid in bedrijf (V-V) | 0 - 96 procent |
Hoogte, in bedrijf | 0 - 3000 m |
Technische details |
Duurzaamheidscertificaten | CE,ENERGY STAR |
Code geharmoniseerd systeem (HS) | 85078000 |
Gewicht en omvang |
Breedte | 440 mm |
Diepte | 605 mm |
Hoogte | 86.5 mm |
Gewicht | 22880 g |
Verpakking |
Rekbevestigingspakket | Ja |
Logistieke gegevens |
Code geharmoniseerd systeem (HS) | 85078000 |
