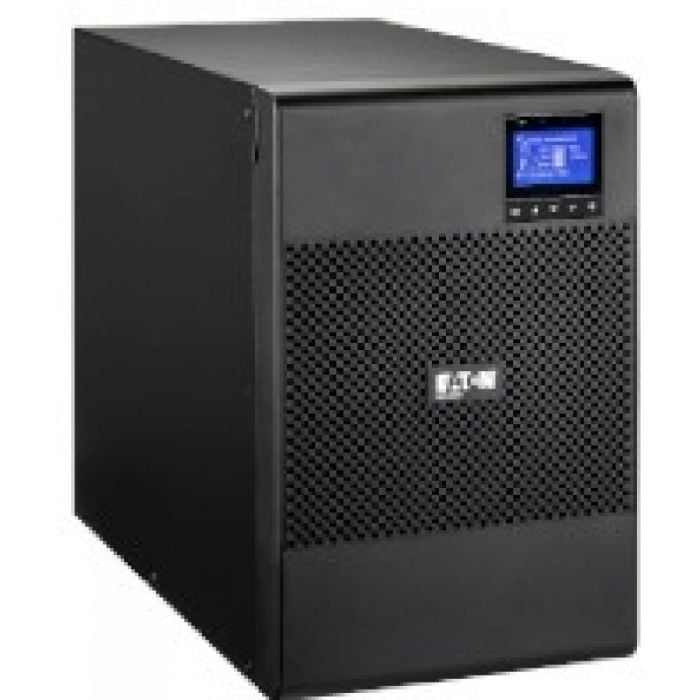

Eaton 9SX 9SX2000I - UPS
200/208/220/230/240 Volt wisselstroom V - 1800 Watt - 2000 VA - RS-232, USB - uitgangen: 8 - PFC
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 3750256
1.657,14
Incl. 21% BTW
1.369,54
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
Raalte:
Niet voorradig
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0743172090980 |
| Fabrikantcode | 9SX2000I |
| Artikelnummer | 3750256 |
| Merk | EATON |
| Link naar fabrikant |
Kenmerken |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 2 kVA |
| Uitgangsvermogen | 1800 W |
| Golfvorm | Zuivere sinus |
| Ingang operation voltage (min) | 200 V |
| Ingang operation voltage (max) | 276 V |
| Frequentie | 40/70 Hz |
| Uitgang operation voltage (min) | 200 V |
| Uitgang operation voltage (max) | 240 V |
| Output frequentie | 50/60 Hz |
| Aantal input fases | 1 |
| Aantal output fases | 1 |
| Power factor | 0.9 |
| ECO mode | Nee |
| Geluidsniveau | 45 dB |
Poorten & interfaces |
| Stopcontacttypes | C13 stekker |
| Stekker | C14 stekker |
| Aantal AC uitgangen | 8 AC-uitgang(en) |
| USB-poort | Ja |
| Aantal USB 2.0-poorten | 1 |
| Seriële interface | Ja |
| Soort serieële aansluiting | RS-232 |
| RS-232 port | 1 |
Accu/Batterij |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Typische backup tijd op halve lading | 20 min |
| Hot-swap batterij | Ja |
| Automatische batterij test | Ja |
Design |
| Vormfactor | Tower |
| Kleur van het product | Zwart |
| Type beeldscherm | LCD |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Safety regulation & standards |
| Veiligheid | IEC/EN 62040-1, UL 1778, CSA 22.2 |
Certificaten |
| Certificering | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC |
Gewicht en omvang |
| Breedte | 214 |
| Diepte | 412 mm |
| Hoogte | 346 mm |
| Gewicht | 33300 g |
Verpakking |
| Beheerskaart inbegrepen | Nee |
| Meegeleverde software | Intelligent Power Software suite |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85078000 |
Overige specificaties |
| Input-connectietype | IEC C14 |
| Nominale input voltage | 230 V |
| Netspanning, in bedrijf | 230 V |
