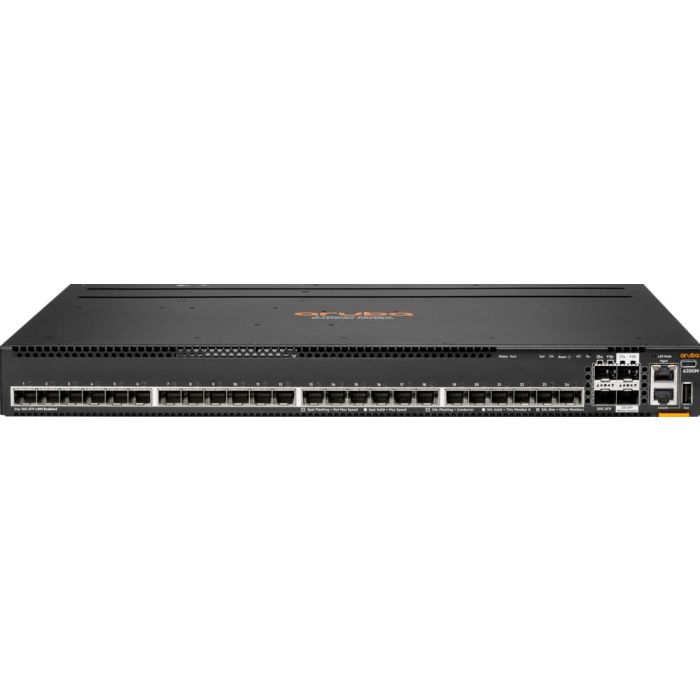

HPE Aruba 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch - Switch
L3 - Beheerd - 24 x 1 Gigabit 10 Gigabit SFP+ + 2 x 1 Gigabit 10 Gigabit 25 Gigabit 50 Gigabit SFP56 (uplink stacking) + 2 x 1 Gigabit 10 Gigabit 25 Gigabit SFP - voor- en zijkant naar achterkant - rack-uitvoering
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 5011598
27.493,93
Incl. 21% BTW
22.722,26
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
429 Too Many Requests
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0190017538693 |
| Fabrikantcode | R8S92A |
| Artikelnummer | 5011598 |
| Merk | HPE |
| Link naar fabrikant |
Beheerfuncties |
| Switch type | Managed |
| Switch-laag | L3 |
Poorten & interfaces |
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Aantal moduleslots SPF | 4 |
| Aantal moduleslots SPF+ | 24 |
| Vezel-optische connector | SFP,SFP28,SFP+,SFP56 |
| Console port | RJ-45/USB Type-C |
Netwerk |
| Netwerkstandaard | IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p,IEEE 802.3az,IEEE 802.1w,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1ab,IEEE 802.3ae,IEEE 802.1ak,IEEE 802.1v,IEEE 802.1t,IEEE 802.1ad,IEEE 802.1AX |
| 10G support | Ja |
| Port mirroring | Ja |
| Datastroombeheer | Ja |
| Spanning tree protocol | Ja |
| Verbindingsaggregatie | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 1000,10000,25000,50000 Mbit/s |
| VLAN=ondersteuning | Ja |
Optische vezel |
| Transmissie afstand (max) | 10 km |
Data-uitwisseling |
| MAC-adrestabel | 32768 entries |
| Switchingcapaciteit | 880 Gbit/s |
| Throughput | 660 Mpps |
| Latentie (1 Gbps) | 4.24 µs |
| Latentie (10 Gbps) | 1.5 µs |
| Jumbo Frames ondersteuning | Ja |
| Packet buffergeheugen | 8 MB |
Beveiliging |
| DHCP-functies | DHCP client,DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| SSH/SSL support | Ja |
| Ondersteunde beveiligingsalgoritmen | SSH |
| Authenticatie type | RADIUS, TACACS+ |
Multicast-functies |
| Multicast-ondersteuning | Ja |
Protocollen |
| Routing protocols | OSPF,RIP-2,BGP4,BGP,OSPFv2,OSPFv3 |
Design |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Aantal ventilatoren | 2 ventilator(en) |
Prestatie |
| Physical stacking (units) | 10 |
| Type processor | Ja |
| Processormodel | ARM Cortex-A72 |
| Frequentie van processor | 1800 MHz |
| Type geheugen | SDRAM / Flash |
| Intern geheugen | 8192 |
| Flash memory | 32768 MB |
Power over Ethernet (PoE) |
| Power over Ethernet (PoE) | Nee |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 45 °C |
| Temperatuur bij opslag | -40 - 70 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 15 - 95 procent |
| Luchtvochtigheid bij opslag | 15 - 90 procent |
Gewicht en omvang |
| Breedte | 442 |
| Diepte | 385 mm |
| Hoogte | 44 mm |
