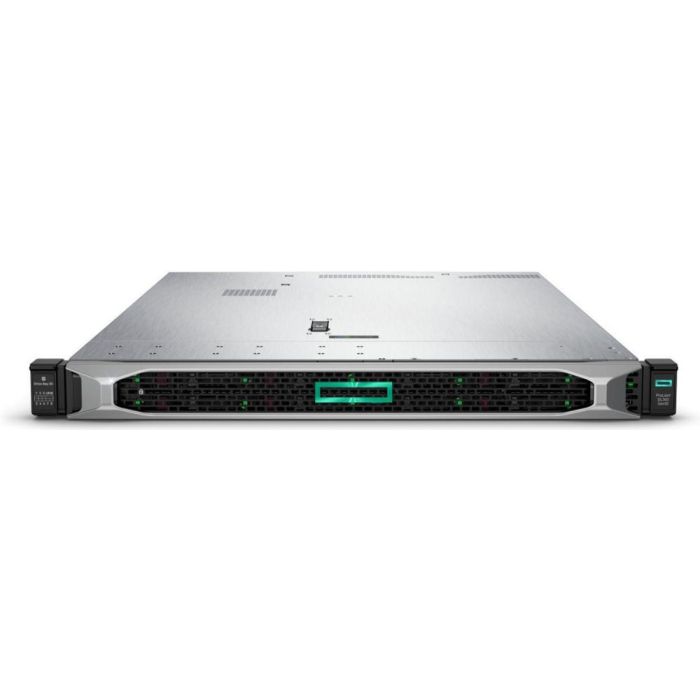

HPE ProLiant DL360 Gen10 Network Choice - Server
rack-uitvoering - 1U - 2-weg - 2 x Xeon Gold 5220 2.2 GHz - RAM 64 GB - SATASAS - hot-swap (verwisselbaar zonder uitschakelen) 2.5" station(s) - geen HDD - Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet - geen OS - monitor: geen
Artikelnummer:
4465227
19.336,40
Excl. BTW:
15.980,50
Excl. BTW:
Excl. BTW:
(€ 15.980,50 excl. 21% btw)
10+ werkdagen
Raalte:
Niet voorradig
Leverancier:
Niet voorradig
- Gratis retour bij defect binnen de garantie *
- Particulier minimaal 2 jaar garantie
- Advies nodig? Plan hier een gratis gesprek
Fabrikantcode | P40401-B21 |
---|---|
EAN | 0190017492223 |
Processorfamilie | Intel® Xeon® Gold |
Intern geheugen | 64 GB |
Intern geheugentype | DDR4-SDRAM |
Type behuizing | Rack (1U) |
Netvoeding | 800 W |
Bekijk alle specificaties
Productspecificaties
Productspecificaties
Algemeen |
|
---|---|
Merk | HP ENTERPRISE |
Artikelnummer | 4465227 |
Fabrikantcode | P40401-B21 |
EAN | 0190017492223 |
Processor |
Processorfabrikant | Intel |
Processorgeneratie | 2e generatie Intel® Xeon® schaalbaar |
Processorfamilie | Intel® Xeon® Gold |
Processormodel | 5220 |
Frequentie van processor | 2.2 GHz |
Maximale turbofrequentie van processor | 3.9 GHz |
Aantal processorkernen | 18 |
Processor cache | 24.75 MB |
Chipset moederbord | Intel® C621 |
Aantal geïnstalleerde processoren | 2 |
Thermal Design Power (TDP) | 125 W |
Processor cache type | L3 |
Max. aantal SMP-processoren | 2 |
Processor socket | LGA 3647 (Socket P) |
Processor lithografie | 14 nm |
Processor aantal threads | 36 |
Processor operating modes | 64-bit |
Codenaam processor | Cascade Lake |
Tcase | 87 °C |
Maximaal intern geheugen ondersteund door processor | 1024 GB |
Geheugentypen ondersteund door processor | DDR4-SDRAM |
Klokgeheugen-snelheden ondersteund door processor | 2667 MHz |
Execute Disable Bit | Ja |
Maximaal aantal PCI Express-lijnen | 48 |
Verpakkingsgrootte processor | 76.0 x 56.5 mm |
Ondersteunde instructie sets | AVX-512 |
Schaalbaarheid | 4S |
Ingebouwde opties beschikbaar | Nee |
Geheugen |
Intern geheugen | 64 GB |
Intern geheugentype | DDR4-SDRAM |
Geheugenslots | 24x DIMM |
ECC | Ja |
Kloksnelheid geheugen | 2933 MHz |
Geheugenlayout | 2 x 32 GB |
Maximum intern geheugen | 1536 GB |
Opslagmedia |
Maximale opslagcapaciteit | 26.4 TB |
HDD interface | SATA, Serial Attached SCSI (SAS) |
Maximum aantal HDD's per behuizing | 8 |
Ondersteunde HDD-groottes | 2.5 " |
RAID support | Ja |
Soorten RAID | 0,1,5,6,10,50,60 |
Hot-plug ondersteuning | Ja |
Soort optische drive | Nee |
Grafisch |
Ingebouwde grafische adapter | Ja |
Maximum geheugen grafische adapter | 16 MB |
Netwerk |
LAN controller | Broadcom 57414 |
Ethernet LAN | Ja |
Ethernet interface type | 10 Gigabit Ethernet,25 Gigabit Ethernet |
Poorten & interfaces |
Aantal Ethernet LAN (RJ-45)-poorten | 2 |
VGA (D-Sub)poort(en) | 1 |
Uitbreidingsmodules |
PCI Express slots versie | 3.0 |
Design |
Type behuizing | Rack (1U) |
Kleur van het product | Zwart,Zilver |
Rack-montage | Ja |
Prestatie |
Beheer op afstand | iLO 5 ASIC |
Trusted Platform Module (TPM) | Ja |
Trusted Platform Module (TPM) version | 2.0 |
Code geharmoniseerd systeem (HS) | 84714100 |
Software |
Inclusief besturingssysteem | Nee |
Compatibele besturingssystemen | Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Windows Server 2012 R2: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2012 R2, 2016 & 2019 VMware vSphere: 6.0 U3, 6.5 U2 & 6.7 U1 ClearVM: 7.6 & 8.0 Red Hat Enterprise Linux (RHEL): 7.6 w/ Kbase SUSE Linux Enterprise Server (SLES): 12 SP4 & 15 SP1 (inc. Xen) |
Processor speciale functies |
Enhanced Intel SpeedStep Technology | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® Hyper Threading Technology (Intel® HT Technology) | Ja |
Intel® Turbo Boost Technology | 2.0 |
Intel® AES New Instructions (Intel® AES-NI) | Ja |
Intel® Trusted Execution Technology | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® TSX-NI | Ja |
Intel® 64 | Ja |
Intel® Virtualization Technology (VT-x) | Ja |
ARK ID processor | 193388 |
Energie |
Redundante voeding | Ja |
Netvoeding | 800 W |
Aantal geïnstalleerde redundante voedingen | 2 |
Logistieke gegevens |
Code geharmoniseerd systeem (HS) | 84714100 |
Gewicht en omvang |
Breedte | 434.6 mm |
Diepte | 707 mm |
Hoogte | 42.9 mm |
Technische details |
Duurzaamheidscertificaten | ENERGY STAR |
