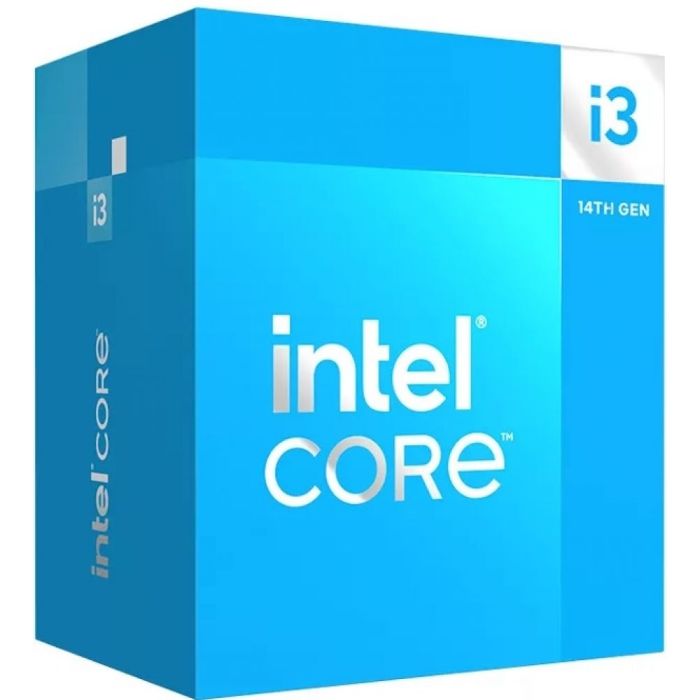

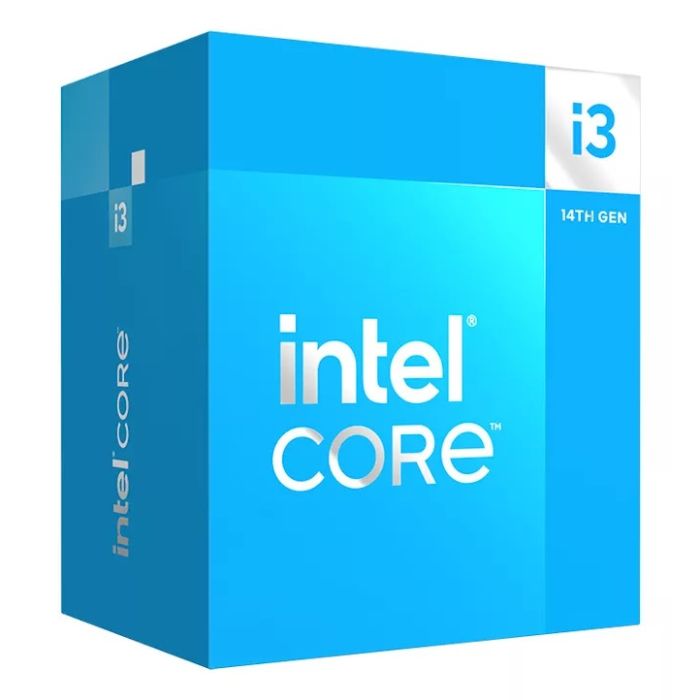

Intel Core i3 14100 - Processor
3.5 GHz (4.7 GHz) - 4 core 4P+0E - 8 threads - 12 MB cache - LGA1700 Socket - zonder koeler
Artikelnummer: 6677766
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving
De 14e generatie Intel® Core desktop processors genaamd Raptor Lake-S hebben een nieuwe chip lay-out met verschillende CPU cores voor verschillende toepassingsscenario's. De Performance Cores leveren prestaties voor rekenintensieve toepassingen, terwijl de Efficiency Cores zorgen voor energie-efficiëntie bij lage belasting. De Raptor Lake-S processors ondersteunen PCIe Gen 5.0 en 4.0, DDR5 en DDR4. De processor is compatibel met moederborden die zijn gebaseerd op de Intel® 700 en 600 chipsets.
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0735858547512 |
| Fabrikantcode | BX8071514100 |
| Artikelnummer | 6677766 |
| Merk | INTEL |
| Link naar fabrikant |
Processor |
| Processorfabrikant | Intel |
| Processorfamilie | Intel® Core™ i3 |
| Processorgeneratie | Intel Core i3-14xxx |
| Processormodel | i3-14100 |
| Aantal processorkernen | 4 |
| Processor socket | LGA 1700 |
| Box | Ja |
| Inclusief koeler | Ja |
| Component voor | PC |
| Processor aantal threads | 8 |
| Processor operating modes | 64-bit |
| Prestatiekernen | 4 |
| Maximale turbofrequentie van processor | 4.7 GHz |
| Prestatie-kernboostfrequentie | 4.7 GHz |
| Prestatie-kernbasisfrequentie | 3.5 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor basisvermogen | 60 W |
| Maximaal turbovermogen | 110 W |
| Stepping | H0 |
| Maximum aantal DMI lanes | 8 |
| Geheugenbandbreedte ondersteund door de processor ( max) | 76.8 GB/s |
| Codenaam processor | Raptor Lake |
| ARK ID processor | 236774 |
Geheugen |
| Maximaal intern geheugen ondersteund door processor | 192 GB |
| Geheugentypen ondersteund door processor | DDR4-SDRAM,DDR5-SDRAM |
| Geheugen kanaal | Dubbelkanaals |
| Geheugen bandbreedte (max) | 76.8 GB/s |
Grafisch |
| Ingebouwde grafische adapter | Ja |
| Aparte grafische adapter | Nee |
| On-board graphics adapter model | Intel UHD Graphics 730 |
| On-board ondersteunde grafische adapter uitgangen | Embedded DisplayPort (eDP) 1.4b,HDMI 2.1,DisplayPort 1.4a |
| Graphics on-board -adapter dynamische frequentie (max) | 1500 MHz |
| Aantal displays ondersteund (door on-board grafische adapter) | 4 |
| On-board grafische adapter OpenGL versie | 4.5 |
| On-board grafische adapter DirectX-versie | 12.0 |
| Graphics aan boord maximale resolutie adapter (DisplayPort ) | 7680 x 4320 Pixels |
| Maximale resolutie ingebouwde grafische adapter (HDMI) | 4096 x 2160 Pixels |
| Maximale resolutie (eDP - Integrated Flat Panel) | 5120 x 3200 Pixels |
| Refresh rate op maximale resolutie (eDP - Integrated Flat Panel) | 120 Hz |
| Grafische adapter refresh rate on-board bij maximale resolutie (DisplayPort ) | 60 Hz |
| Verversingsfrequentie ingebouwde grafische adapter bij maximale resolutie (HDMI) | 60 Hz |
| On-board grafische adapter ID | 0x4692 |
| Discreet grafische adapter model | Niet beschikbaar |
| Aantal verwerkingseenheden | 24 |
| Multi-Formaat Codec-motoren | 1 |
Kenmerken |
| Execute Disable Bit | Ja |
| Thermal Monitoring Technologies | Ja |
| Idle States | Ja |
| Marktsegment | Desktop |
| Gebruiksvoorwaarden | PC/Client/Tablet |
| Maximaal aantal PCI Express-lijnen | 20 |
| PCI Express slots versie | 4.0,5.0 |
| PCI Express configuraties | 1x16+1x4,2x8+1x4 |
| Ondersteunde instructie sets | SSE4.1,AVX 2.0,SSE4.2 |
| CPU configuratie (max) | 1 |
| Directe media-interface (DMI) revisie | 4.0 |
| Schaalbaarheid | 1S |
| Ingebouwde opties beschikbaar | Ja |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
Processor speciale functies |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Ja |
| Enhanced Intel SpeedStep Technology | Ja |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Ja |
| Intel® Speed Shift-technologie | Ja |
| Intel® AES New Instructions (Intel® AES-NI) | Ja |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Ja |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Ja |
| Intel® Control-flow Enforcement Technology (CET) | Ja |
| Intel® OS Guard | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel® Boot Guard | Ja |
| Intel® 64 | Ja |
| Mode-based Execute Control (MBE) | Ja |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Ja |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Intel® Virtualization Technology (VT-x) | Ja |
| Intel® Volume Management Device (VMD) | Ja |
| Intel® Standard Manageability (ISM, Standaard beheerbaarheid) | Ja |
| Intel® Secure Key | Ja |
Eisen aan de omgeving |
| Tjunction | 100 °C |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 8542310001 |
Technische details |
| OpenCL-versie | 3.0 |
| Status | Launched |
| Lanceringsdatum | Q1'24 |
Gewicht en omvang |
| Verpakkingsgrootte processor | 45 x 37.5 mm |
Overige specificaties |
| Maximum intern geheugen | 192 GB |
| L2 cache | 5120 KB |
| Grafische uitvoer | eDP 1.4b, DP 1.4a, HDMI 2.1 |
