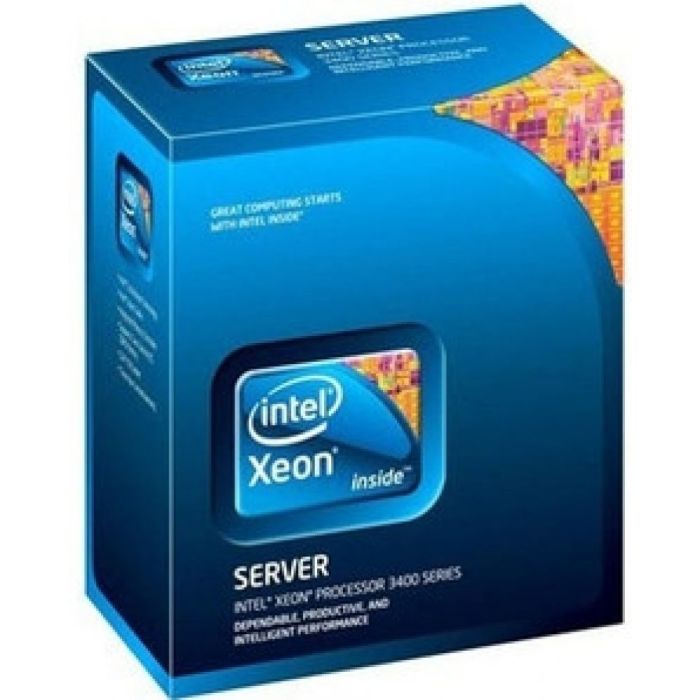

Intel Xeon L3406 - 2.26 GHz
2 cores - 4 threads - 4 MB cache - LGA1156 Socket - doos
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 785228
220,52
Incl. 21% BTW
182,25
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
Raalte:
Niet voorradig
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving
Intel Xeon L3406. Processorfamilie: Intel® Xeon®, Processor socket: LGA 1156 (Socket H), Processor lithografie: 32 nm. Geheugen kanaal: Dubbelkanaals, Maximaal intern geheugen ondersteund door processor: 16 GB, Geheugentypen ondersteund door processor: DDR3-SDRAM. Marktsegment: Server, PCI Express configuraties: 1x16, 2x8, Aantal Processing Die Transistors: 382 M. Breedte verpakking: 81 mm, Diepte verpakking: 114 mm, Hoogte verpakking: 102 mm. Verpakkingsgrootte processor: 37.5 x 37.5 mm
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 5032037010757 |
| Fabrikantcode | BX80616L3406 |
| Artikelnummer | 785228 |
| Merk | INTEL |
| Link naar fabrikant |
Processor |
| Processorfabrikant | Intel |
| Processorfamilie | Intel® Xeon® |
| Processormodel | L3406 |
| Basisfrequentie processor | 2.26 GHz |
| Aantal processorkernen | 2 |
| Processor socket | LGA 1156 (Socket H) |
| Processor lithografie | 32 nm |
| Box | Ja |
| Inclusief koeler | Ja |
| Component voor | Server/werkplaats |
| Processorserie | Intel Xeon 3400 Series |
| Processor aantal threads | 4 |
| Systeembus | 2.5 GT/s |
| Processor operating modes | 64-bit |
| Maximale turbofrequentie van processor | 2.53 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 30 W |
| VID Voltage Range | 0,65 - 1,4 V |
| Compatibele chipsets | Intel® 3400,Intel® 3420,Intel® 3450 |
| Stepping | C2 |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 17 |
| Geheugenbandbreedte ondersteund door de processor ( max) | 17 GB/s |
| Codenaam processor | Clarkdale |
| Processorcode | SLBQQ |
| ARK ID processor | 47555 |
Geheugen |
| Maximaal intern geheugen ondersteund door processor | 16 GB |
| Geheugentypen ondersteund door processor | DDR3-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 1066 MHz |
| Geheugen kanaal | Dubbelkanaals |
| ECC | Ja |
Grafisch |
| Ingebouwde grafische adapter | Nee |
Kenmerken |
| Execute Disable Bit | Ja |
| Thermal Monitoring Technologies | Nee |
| Idle States | Ja |
| Marktsegment | Server |
| Maximaal aantal PCI Express-lijnen | 16 |
| PCI Express slots versie | 2.0 |
| PCI Express configuraties | 1x16,2x8 |
| Aantal Processing Die Transistors | 382 m |
| Processing die grootte | 81 mm² |
| Aantal Graphics & IMC Die Transistors | 177 m |
| Graphics & IMC Die Size | 114 mm² |
| Ondersteunde instructie sets | SSE4.2 |
| CPU configuratie (max) | 1 |
| PCI Express CEM revisie | 2.0 |
| Ingebouwde opties beschikbaar | Nee |
| Physical Address Extension (PAE) | 36 Bit |
| Physical Address Extension (PAE) | Ja |
| Graphics & IMC lithografie | 45 nm |
| Export Control Classification Number (ECCN) | 3A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
Processor speciale functies |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Ja |
| Enhanced Intel SpeedStep Technology | Ja |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Trusted Execution Technology | Ja |
| Intel® AES New Instructions (Intel® AES-NI) | Nee |
| Intel® Enhanced Halt State | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel® 64 | Ja |
| Intel® vPro™ Platform Eligibility | Nee |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Intel® Virtualization Technology (VT-x) | Ja |
| Intel® Demand Based Switching | Ja |
Eisen aan de omgeving |
| Tcase | 53.9 °C |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85423119 |
Technische details |
| Processorcache | 4096 KB |
| Type product | Processor |
| Ondersteunde geheugen types | DDR3-SDRAM |
| Maximaal geheugen | 16.38 GB |
| Status | Discontinued |
| Bandbreedte bus | 2.5 |
| Introductiedatum | Q1'10 |
| Type buseenheden | GT/s |
| Productnaam | Intel Xeon L3406 (4M Cache, 2.26 GHz) |
| Merknaam processor | Intel Xeon |
| Voltage processorkern | 0.6500-1.400 V |
| Productfamilie | Intel Xeon Processor 3000 Sequence |
| Laatste wijziging | 63903513 |
| Lanceringsdatum | Q1'10 |
| Bussnelheid | 2.5 GT/s |
Verpakking |
| Breedte verpakking | 81 mm |
| Diepte verpakking | 114 mm |
| Hoogte verpakking | 102 mm |
| Gewicht verpakking | 394 g |
| Type verpakking | Retaildoos |
Gewicht en omvang |
| Verpakkingsgrootte processor | 37.5 x 37.5 mm |
Overige specificaties |
| Intel® Virtualization Technology (Intel® VT) | VT-d,VT-x |
| Cache memory | 4 MB |
| Maximaal intern geheugen | 16777 MB |
| Maximum intern geheugen | 16.38 GB |
