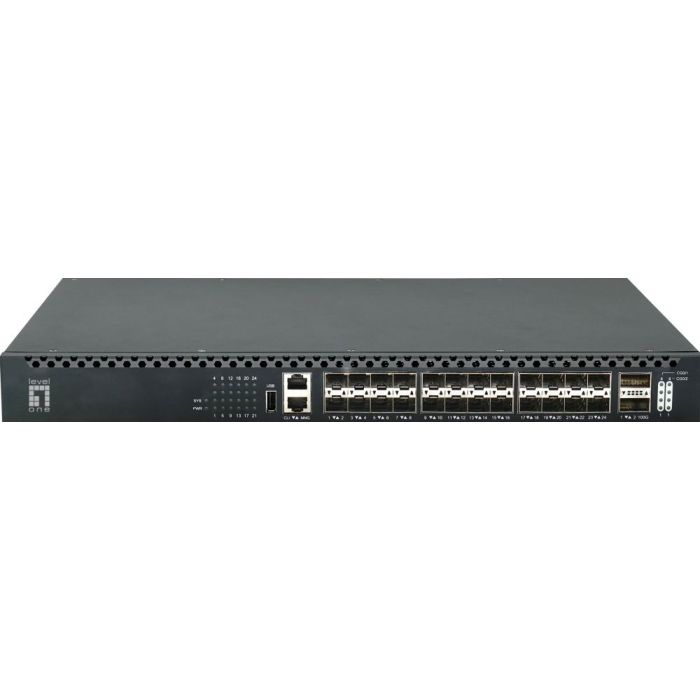

LevelOne Switch 26x GE XQS-3126 2x40/100GbE 19" 185W 24xPoE

calcActive())">
Artikelnummer: 8037543
Stapelkorting
1.477,-
Incl. 21% BTW
1.220,66
Excl. 21% BTW
Excl. BTW:
2-3 werkdagen
Raalte:
Niet voorradig
Leverancier:
3 stuk(s) voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
- Advies nodig? Plan hier een gratis gesprek
Productspecificaties
Algemeen |
|
---|---|
Merk | LEVEL ONE |
Artikelnummer | 8037543 |
Fabrikantcode | XQS-3126 |
EAN | 4015867238479 |
Link naar fabrikant |
Beheerfuncties |
Switch type | Managed |
Switch-laag | L3 |
Quality of Service (QoS) | Ja |
Web-gebaseerd management | Ja |
Traffic-classificatie | Ja |
Poorten & interfaces |
Type basis-switching RJ-45 Ethernet-poorten | Nee |
Aantal moduleslots SPF+ | 24 |
Aantal beheerpoorten | 1 stuk(s) |
Console port | RJ-45 |
Aantal QSFP28-poorten | 2 |
Aantal USB 2.0-poorten | 1 |
Netwerk |
Netwerkstandaard | IEEE 802.1AE,IEEE 802.1D,IEEE 802.1ag,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ah,IEEE 802.3az |
10G support | Nee |
Op beleid gebaseerde routering | Ja |
Verbindingsaggregatie | Ja |
Spanning tree protocol | Ja |
MAC-adres zelflerende functie | Ja |
MAC-adres zelfverouderende functie | Ja |
Ethernet Ring Protection Switching (ERPS) | Ja |
Fast-leave | Ja |
6to4-tunnel | Ja |
VLAN=ondersteuning | Ja |
Virtuele LAN-functies | Private VLAN,Protocol-based VLAN |
Aantal VLANs | 4000 |
Type VLAN-toewijzing | 1:1 VLAN-toewijzing,N:1 VLAN-toewijzing |
Data-uitwisseling |
Switchingcapaciteit | 880 Gbit/s |
Verzending snelheid | 660 Mpps |
MAC-adrestabel | 128000 entries |
Jumbo Frames ondersteuning | Ja |
Jumbo frames | 16000 |
Path MTU discovery (PMTUD) | Ja |
Packet buffergeheugen | 4.5 MB |
Beveiliging |
DHCP-functies | DHCP Option 82,DHCP snooping |
Access Control List (ACL) | Ja |
IGMP snooping | Ja |
MAC adres filtering | Ja |
BPDU filtering / bescherming | Ja |
IP-MAC-Port binding | Ja |
Root-bescherming | Ja |
DoS aanval preventie | Ja |
Authenticatie type | IEEE 802.1x, RADIUS, TACACS+ |
Algoritmen wachtrijplanning | SP,WRR+SP,Weighted Round Robin (WRR),Weighted random early detection (WRED) |
Multicast-functies |
Multicast-ondersteuning | Ja |
Multicast-functies | Multicast traffic suppression |
Protocollen |
GARP VLAN Registratieprotocol (GVRP) | Ja |
Routing protocols | BGP,BGP4+,HSRP,MPLS,OSPF,OSPFv3,RIP-1,RIP-2,RIPng,VRRP |
Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) | Ja |
Design |
Rack-montage | Ja |
Kleur van het product | Zwart |
Land van herkomst | China |
Prestatie |
Intern geheugen | 2048 MB |
Flash memory | 4096 MB |
Geluidsniveau | 57 dB |
sFlow | Ja |
Handmatig geconfigureerde tunnel | Ja |
Fanloos | Nee |
Mean time between failures (MTBF) | 200000 uur |
Energie |
Stroombron | AC |
Vermogenstoevoer inclusief | Ja |
Redundante voeding | Ja |
Aantal voedingen | 2 |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50 Hz |
Stroomverbruik (typisch) | 26 W |
Vermogensverbruik (max) | 64 W |
Power over Ethernet (PoE) |
Power over Ethernet (PoE) | Nee |
Eisen aan de omgeving |
Bedrijfstemperatuur (T-T) | -10 - 50 °C |
Temperatuur bij opslag | -20 - 70 °C |
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Luchtvochtigheid bij opslag | 5 - 95 procent |
Warmtedissipatie | 238.91 BTU/h |
Gewicht en omvang |
Breedte | 442.5 mm |
Diepte | 300 mm |
Hoogte | 44.5 mm |
Gewicht | 4250 g |
Verpakking |
Meegeleverde kabels | AC |
Snelstartgids | Ja |
Rekbevestigingspakket | Ja |
Rubberen voetjes | Ja |
Breedte verpakking | 576 mm |
Diepte verpakking | 448 mm |
Hoogte verpakking | 94 mm |
Gewicht verpakking | 7450 g |
Technische details |
Certificaten van naleving | Federal Communications Commission (FCC),RoHS,UKCA |
Aantal dozen per pallet (lucht) | 18 stuk(s) |
Pallet brutolengte | 1000 mm |
Pallet brutobreedte | 1200 mm |
Pallethoogte (lucht) | 1649 mm |
Logistieke gegevens |
(Buitenste) hoofdverpakking breedte | 605 mm |
(Buitenste) hoofdverpakking lengte | 462 mm |
(Buitenste) hoofdverpakking hoogte | 215 mm |
Code geharmoniseerd systeem (HS) | 851762 |
(Buitenste) hoofdverpakking brutogewicht | 15700 g |
Hoeveelheid per (buitenste) hoofdverpakking | 2 stuk(s) |
