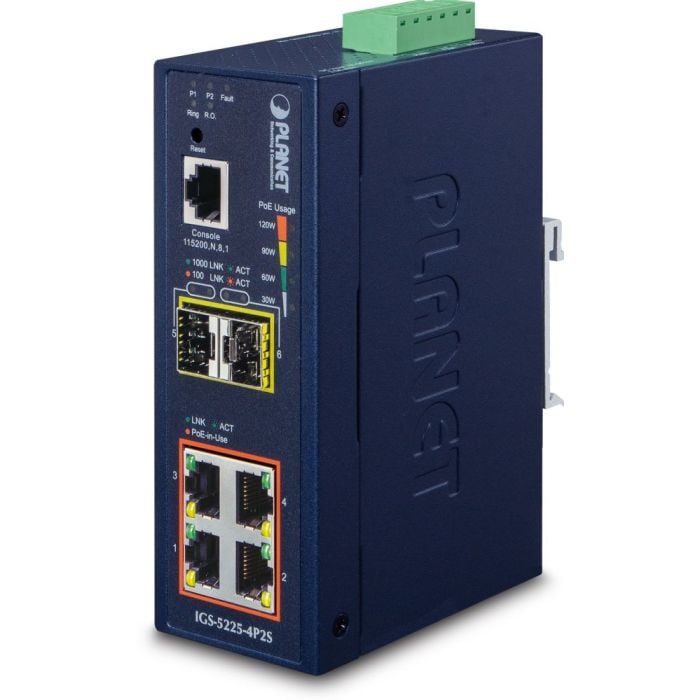

PLANET Industrial L2+ 4-Port 1000T 802.3at PoE + 2-Port SFP
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 4127141
374,-
Incl. 21% BTW
309,09
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
429 Too Many Requests
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 4711605283892 |
| Fabrikantcode | IGS-5225-4P2S |
| Artikelnummer | 4127141 |
| Merk | PLANET |
| Link naar fabrikant |
Beheerfuncties |
| Switch type | Managed |
| Switch-laag | L2+ |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
Poorten & interfaces |
| Aantal basis-switching RJ-45 Ethernet-poorten | 4 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF | 2 |
| Console port | RJ-45 |
| Netstekker | Terminal block (3-pin) |
Netwerk |
| Netwerkstandaard | IEEE 802.3af |
| 10G support | Nee |
| Port mirroring | Ja |
| Full duplex | Ja |
| Half-duplex | Ja |
| Routing entries | 32 |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Auto MDI/MDI-X | Ja |
| Broadcast stormbeheer | Ja |
| Auto-negotiation | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Tagged VLAN,Private VLAN,Voice VLAN,MAC address-based VLAN,Protocol-based VLAN,Multicast VLAN |
| Aantal VLANs | 4094 |
Data-uitwisseling |
| MAC-adrestabel | 8000 entries |
| Switchingcapaciteit | 12 Gbit/s |
| Throughput | 8.928 Mpps |
| Store-and-forward | Ja |
| Statische route | Ja |
| Aantal statische routes | 32 |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9000 |
| Packet buffergeheugen | 4 MB |
Beveiliging |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Statische poort beveiliging | Ja |
| BPDU filtering / bescherming | Ja |
| Algoritmen wachtrijplanning | Weighted Round Robin (WRR),Priority queuing (PQ) |
| SSH/SSL support | Ja |
| Ondersteunde beveiligingsalgoritmen | SNMPv3,SNMP |
| Bescherming lus | Ja |
Multicast-functies |
| Multicast-ondersteuning | Ja |
Protocollen |
| GARP VLAN Registratieprotocol (GVRP) | Ja |
Design |
| Kleur van het product | Blauw |
| Materiaal behuizing | Metaal |
| Reset button | Ja |
| LED-indicatoren | Storing,Power over Ethernet (PoE),Activiteit,Link,Ring,Stroom |
| DIN rail bevestiging | Ja |
| Ophangsysteem voor aan de muur | Ja |
| Internationale veiligheidscode (IP) | IP40 |
Energie |
| DC voltage input | 48 - 56 V |
| Vermogensverbruik (max) | 151.8 W |
Power over Ethernet (PoE) |
| Totaal Power over Ethernet (PoE)-budget | 144 W |
| Power over Ethernet (PoE) | Ja |
| Vermogen per poort Power over Ethernet (PoE) | 36 W |
| Aantal Power over Ethernet plus (PoE +)-poorten | 4 |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | -40 - 75 °C |
| Temperatuur bij opslag | -40 - 85 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Warmtedissipatie | 520.82 BTU/h |
Gewicht en omvang |
| Breedte | 50 |
| Diepte | 87.8 mm |
| Hoogte | 135 mm |
| Gewicht | 610 g |
Certificaten |
| Certificering | FCC Part 15 Class A, CE IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85176990 |
