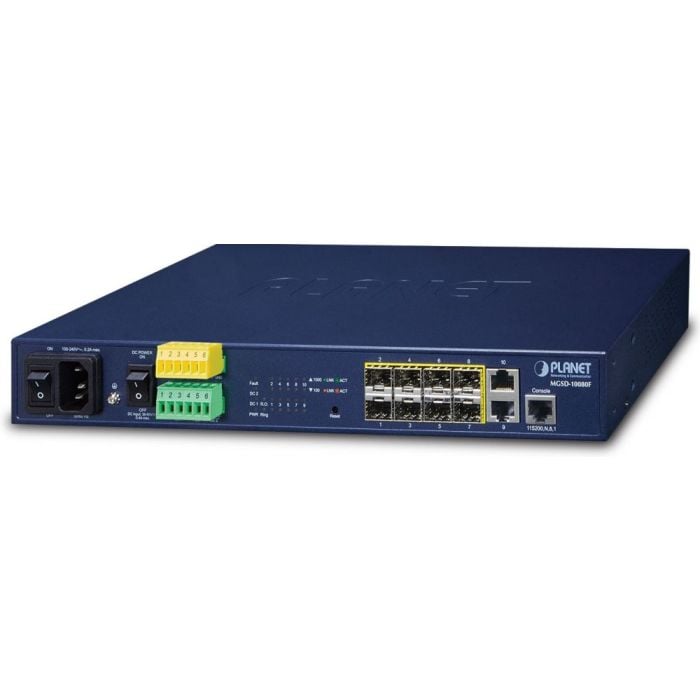

PLANET MGSD-10080F - Switch
Beheerd - 8 x SFP + 2 x 10/100/1000 - desktop, rack-uitvoering
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 2406448
394,22
Incl. 21% BTW
325,80
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
429 Too Many Requests
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 4711213689406 |
| Fabrikantcode | MGSD-10080F |
| Artikelnummer | 2406448 |
| Merk | PLANET |
| Link naar fabrikant |
Beheerfuncties |
| Switch type | Managed |
| Switch-laag | L2+ |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Traffic-classificatie | Ja |
| ARP-inspectie | Ja |
| System event log | Ja |
Poorten & interfaces |
| Aantal Gigabit Ethernet (koper)-poorten | 2 |
| Aantal moduleslots SPF | 8 |
| Console port | RJ-45 |
Netwerk |
| Netwerkstandaard | IEEE 802.3u,IEEE 802.3,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p,IEEE 802.1x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1ab |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 10BASE-T,100BASE-TX |
| Port mirroring | Ja |
| Full duplex | Ja |
| Datastroombeheer | Ja |
| Spanning tree protocol | Ja |
| Verbindingsaggregatie | Ja |
| MAC-adres zelflerende functie | Ja |
| Auto MDI/MDI-X | Ja |
| Broadcast stormbeheer | Ja |
| Rate limiting | Ja |
| Auto-negotiation | Ja |
| MAC-adres zelfverouderende functie | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Tagged VLAN,Private VLAN,Protocol-based VLAN,Stacked VLAN |
| Aantal VLANs | 4094 |
Optische vezel |
| Fiber ethernet cabling technologie | 1000BASE‑LX,1000BASE‑SX |
Data-uitwisseling |
| MAC-adrestabel | 8000 entries |
| Switchingcapaciteit | 20 Gbit/s |
| Throughput | 14.8 Mpps |
| Store-and-forward | Ja |
| Aantal wachtrijen | 8 |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9216 |
Beveiliging |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| BPDU filtering / bescherming | Ja |
| SSH/SSL support | Ja |
| Ondersteunde beveiligingsalgoritmen | SNMP,SSL/TLS,SSH |
| Authenticatie | Poortgebaseerde authenticatie |
| Bescherming lus | Ja |
Multicast-functies |
| Multicast-ondersteuning | Ja |
Protocollen |
| Beheerprotocollen | web, telnet, SNMP |
| Ondersteunde netwerkprotocollen | IPv4 / IPv6 |
Design |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Kleur van het product | Blauw |
| Reset button | Ja |
| LED-indicatoren | Ja |
| DIN rail bevestiging | Nee |
Prestatie |
| Upgraden van firmware mogelijk | Ja |
Energie |
| Vermogenstoevoer inclusief | Nee |
| Redundante voeding | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroom | 0.15 A |
| Vermogensverbruik (max) | 11.2 W |
Power over Ethernet (PoE) |
| Power over Ethernet (PoE) | Nee |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | -10 - 60 °C |
| Temperatuur bij opslag | -10 - 70 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
Gewicht en omvang |
| Breedte | 330 |
| Diepte | 155 mm |
| Hoogte | 43.5 mm |
| Gewicht | 1661 g |
Certificaten |
| Certificering | FCC, CE |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85176990 |
