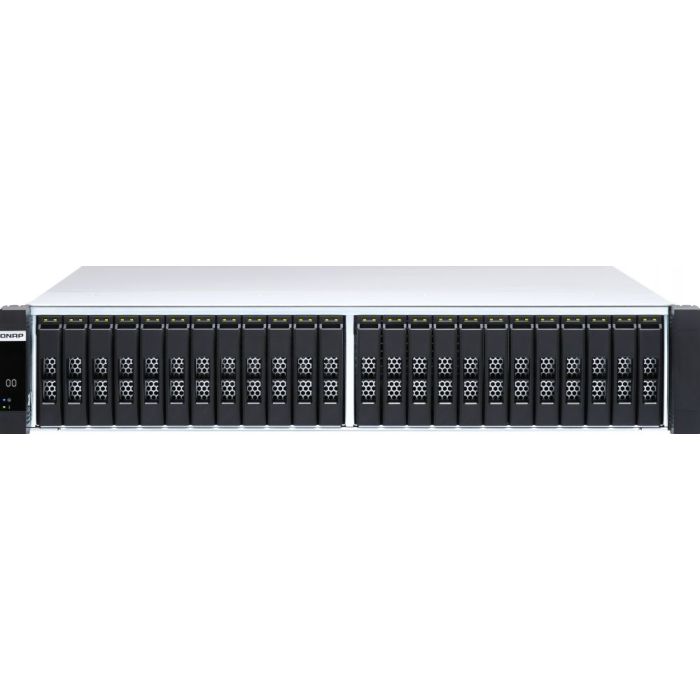

QNAP ES2486dc - NAS-server
24 bays - rack-uitvoering - SAS 12Gbs - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP - RAM 96 GB - Gigabit Ethernet 10 Gigabit Ethernet - iSCSI ondersteuning - 2U
Artikelnummer:
4100432
16.312,00
Excl. BTW:
13.480,99
Excl. BTW:
Excl. BTW:
(€ 13.480,99 excl. 21% btw)
10+ werkdagen
Raalte:
Niet voorradig
Leverancier:
Niet voorradig
- Gratis retour bij defect binnen de garantie *
- Particulier minimaal 2 jaar garantie
- Advies nodig? Plan hier een gratis gesprek
Fabrikantcode | ES2486DC-2142IT-96G |
---|---|
EAN | 4713213516515 |
Opslagdrives geïnstalleerd | Nee |
Aantal storage drives ondersteund | 24 |
Ondersteunde types opslag-drives | HDD & SSD |
RAID support | Ja |
Processorfamilie | Intel® Xeon® D |
Intern geheugen | 96 GB |
Bekijk alle specificaties
Productspecificaties
Productspecificaties
Algemeen |
|
---|---|
Merk | QNAP |
Artikelnummer | 4100432 |
Fabrikantcode | ES2486DC-2142IT-96G |
EAN | 4713213516515 |
Opslagmedia |
Ondersteunde opslagstationinterfaces | Serial Attached SCSI (SAS) |
Opslagschijf afmetingen ondersteund | 2.5 " |
RAID support | Ja |
Soorten RAID | 0,1,5,6,10,50,60,JBOD |
Online RAID-migratie | Ja |
Online RAID-uitbreiding | Ja |
Hot-swap drive bays | Ja |
Ondersteunde bestandsystemen | ZFS |
Opslagdrives geïnstalleerd | Nee |
Aantal storage drives ondersteund | 24 |
Geïnstalleerde opslag-drive | Nee |
Ondersteunde types opslag-drives | HDD & SSD |
Scannen op beschadigd blokken | Ja |
Processor |
Processorfabrikant | Intel |
Processorfamilie | Intel® Xeon® D |
Processormodel | D-2142IT |
Frequentie van processor | 1.9 GHz |
Maximale turbofrequentie van processor | 3 GHz |
Aantal processorkernen | 8 |
Processor aantal threads | 16 |
Processor cache | 11 MB |
Bus type | UPI |
CPU configuratie (max) | 1 |
PCI Express slots versie | 3.0 |
Processorcode | SR3ZZ |
Codenaam processor | Skylake |
Processor lithografie | 14 nm |
Processor operating modes | 64-bit |
Processor socket | BGA 2518 |
Schaalbaarheid | 1S |
Stepping | M1 |
Thermal Design Power (TDP) | 65 W |
Maximaal intern geheugen ondersteund door processor | 512 GB |
Conflictvrije processor | Ja |
Geheugen |
Intern geheugentype | DDR4 |
Ondersteund maximum RAM | 512 GB |
Geheugenslots | 8 x R-DIMM/LR-DIMM |
Intern geheugen | 96 GB |
Geheugen form factor | RDIMM |
Flash memory | 4000 MB |
Netwerk |
Ethernet LAN | Ja |
Ethernet LAN, data-overdrachtsnelheden | 10 Mbit/s,100 Mbit/s,1000 Mbit/s |
Ondersteunde datasnelheid Ethernet LAN (max) | 10000 Mbit/s |
Jumbo Frames ondersteuning | Ja |
iSCSI support | Ja |
Wake-on-LAN | Ja |
Ondersteunde netwerkprotocollen | CIFS/SMB2/SMB3, NFS v3/NFS v4, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, SNMP, SMTP, SMSC |
Verbindingsaggregatie | Ja |
Onbalanscontrolesysteem | Ja |
Poorten & interfaces |
USB-poort | Ja |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
Fibre channel-poorten | 8 |
Vezel-optische connector | SFP+ |
Aantal Ethernet LAN (RJ-45)-poorten | 6 |
PCI Express x8 (Gen 3.x) slots | 2 |
Design |
Type behuizing | Rack (2U) |
Type koeling | Actief |
Kleur van het product | Zwart |
Aantal ventilatoren | 6 ventilator(en) |
Ventilator diameter | 60 mm |
LED-indicatoren | Stroom,Status,Systeem |
Ingebouwd display | Ja |
Type beeldscherm | LCD |
Land van herkomst | Taiwan |
Prestatie |
Soort | NAS |
Apparaatklasse | Kleine & middelgrote bedrijven |
Backup-functie | Ja |
Back-up-eigenschappen | Cloud,USB-stick,iSCSI LUN |
Waarschuwingssignaal | Ja |
Ondersteunt meerdere talen | Ja |
Geluidsniveau | 60.9 dB |
Ondersteuning van derden | Ja |
Snap shot | Ja |
Toegangsrechtenbeheer voor gedeelde mappen | Ja |
Ondersteunde beveiligingsalgoritmen | 256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS |
Access Control List (ACL) | Ja |
Reset button | Ja |
Aan/uitschakelaar | Ja |
Ingebouwde ftp-server | Ja |
Ondersteunde browser | Chrome, Firefox, Internet Explorer, Safari |
Systeemlog | Ja |
Hot-spare | Ja |
Schijf-scan | Ja |
S.M.A.R.T. support | Ja |
Gedeelde map | CIFS/SMB, NFS, FTP |
USB-kopieerfunctie | Ja |
Software |
Inclusief besturingssysteem | QNAP Enterprise System |
Operating systeem versie | 2,1,1 |
Ondersteunt Windows | Windows 10,Windows 10 x64,Windows 7,Windows 7 Starter x64,Windows 8,Windows 8 x64 |
Ondersteunt Linux | Ja |
Ondersteunt Mac-besturingssysteem | Ja |
Ondersteunde server operating systems | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
Energie |
Vermogenstoevoer locatie | Ingebouwd |
Capaciteit voedingsunit (PSU) | 700 W |
Aantal voedingen | 2 |
Redundante voeding | Ja |
Stroomverbruik (typisch) | 579.59 W |
AC-ingangsspanning | 90 - 264 V |
Fan voltage | 12 V |
Gewicht en omvang |
Breedte | 483 mm |
Diepte | 545.1 mm |
Hoogte | 88.3 mm |
Gewicht | 27410 g |
Gewicht verpakking | 32830 g |
Inhoud van de verpakking |
Meegeleverde kabels | AC,LAN (RJ-45) |
Rekbevestigingspakket | Ja |
Aantal schroeven | 96 |
Processor speciale functies |
Ingebouwde opties beschikbaar | Ja |
Enhanced Intel SpeedStep Technology | Ja |
Execute Disable Bit | Ja |
Idle States | Ja |
Intel® 64 | Ja |
Intel® Enhanced Halt State | Ja |
Intel® QuickAssist-technologie | Nee |
Versie Intel® Secure Key Technology | 1,00 |
Intel® Trusted Execution Technology | Ja |
Intel® TSX-NI | Ja |
Versie Intel® TSX-NI | 1,00 |
Intel® Virtualization Technology (VT-x) | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® AES New Instructions (Intel® AES-NI) | Ja |
Intel® Hyper Threading Technology (Intel® HT Technology) | Ja |
Intel® OS Guard | Ja |
Intel® Secure Key | Ja |
Intel® Turbo Boost Technology | 2.0 |
Maximaal aantal PCI Express-lijnen | 32 |
Thermal Monitoring Technologies | Ja |
Geheugentypen ondersteund door processor | DDR4-SDRAM |
Technische details |
Code geharmoniseerd systeem (HS) | 84714100 |
Eisen aan de omgeving |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
Certificaten |
Certificering | FCC Class A, CE Mark, EN60950, BSMI, VCCI, CB, LVD |
Logistieke gegevens |
Code geharmoniseerd systeem (HS) | 84714100 |
Overige specificaties |
ARK ID processor | 136432 |
