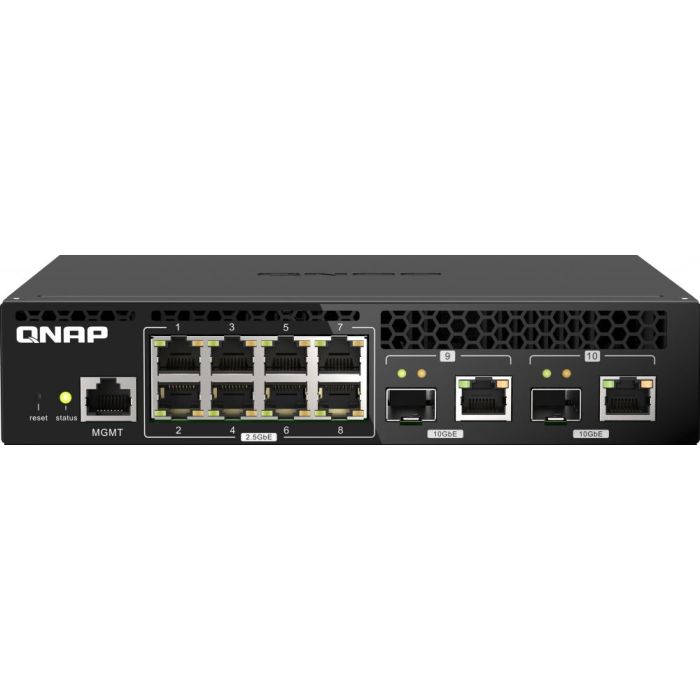

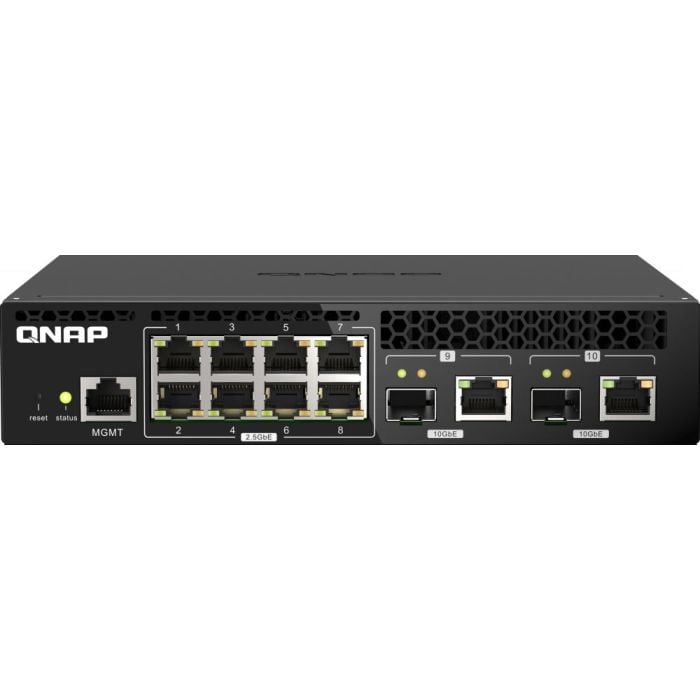

QNAP QSW-M2108R-2C - Switch
Beheerd - 8 x 2.5GBase-T + 2 x combo 10 Gigabit SFP+RJ-45 - desktop, rack-uitvoering
Artikelnummer:
4473454
650,73
Excl. BTW:
537,79
Excl. BTW:
Excl. BTW:
(€ 537,79 excl. 21% btw)
2-3 werkdagen
Raalte:
Niet voorradig
Leverancier:
11 stuk(s) voorradig
- Gratis retour bij defect binnen de garantie *
- Particulier minimaal 2 jaar garantie
- Advies nodig? Plan hier een gratis gesprek
Fabrikantcode | QSW-M2108R-2C |
---|---|
EAN | 4713213518762 |
Switch type | Managed |
Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
Type basis-switching RJ-45 Ethernet-poorten | 2.5G Ethernet (100/1000/2500) |
Netwerkstandaard | IEEE 802.3ae, IEEE 802.3, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3z, IEEE 802.3bz, IEEE 802.1w, IEEE 802.3an, IEEE 802.3ab, IEEE 802.3u |
Switchingcapaciteit | 80 Gbit/s |
Power over Ethernet (PoE) | Ja |
Bekijk alle specificaties
Productspecificaties
Productspecificaties
Algemeen |
|
---|---|
Merk | QNAP |
Artikelnummer | 4473454 |
Fabrikantcode | QSW-M2108R-2C |
EAN | 4713213518762 |
Beheerfuncties |
Switch type | Managed |
Switch-laag | L2 |
Quality of Service (QoS) | Ja |
Web-gebaseerd management | Ja |
Poorten & interfaces |
Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
Type basis-switching RJ-45 Ethernet-poorten | 2.5G Ethernet (100/1000/2500) |
Aantal 2.5G Ethernet (koper)poorten | 8 |
Aantal geïnstalleerde SFP+ modules | 2 |
Aantal Combo SFP-poorten | 2 |
Console port | RJ-45 |
Netwerk |
Netwerkstandaard | IEEE 802.1Q,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3an,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3az |
10G support | Ja |
Full duplex | Ja |
Auto-negotiation | Ja |
VLAN=ondersteuning | Ja |
Data-uitwisseling |
Switchingcapaciteit | 80 Gbit/s |
Throughput | 40000 Mpps |
Doorvoercapaciteit | 40 Gbit/s |
MAC-adrestabel | 16000 entries |
Jumbo Frames ondersteuning | Ja |
Jumbo frames | 9000 |
Beveiliging |
DHCP-functies | DHCP client |
Access Control List (ACL) | Ja |
IGMP snooping | Ja |
Design |
Rack-montage | Ja |
Kleur van het product | Wit,Zwart |
Reset button | Ja |
LED-indicatoren | Activiteit,Link,Stroom,Snelheid,Status |
Aantal ventilatoren | 1 ventilator(en) |
Elektromagnetische compatibiliteit | CLASS A |
Certificering | CE, FCC, VCCI, BSMI |
Prestatie |
Upgraden van firmware mogelijk | Ja |
Fanloos | Nee |
Code geharmoniseerd systeem (HS) | 85176990 |
Energie |
Stroombron | AC |
Vermogenstoevoer inclusief | Ja |
Aantal voedingen | 1 |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50 - 60 Hz |
DC voltage input | 12 V |
Vermogensverbruik (max) | 60 W |
Power over Ethernet (PoE) |
Power over Ethernet (PoE) | Ja |
Eisen aan de omgeving |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
Gewicht en omvang |
Breedte | 207 mm |
Diepte | 199.5 mm |
Hoogte | 43.3 mm |
Gewicht | 1200 g |
Verpakking |
Snelstartgids | Ja |
Gewicht verpakking | 1920 g |
Logistieke gegevens |
Code geharmoniseerd systeem (HS) | 85176990 |
