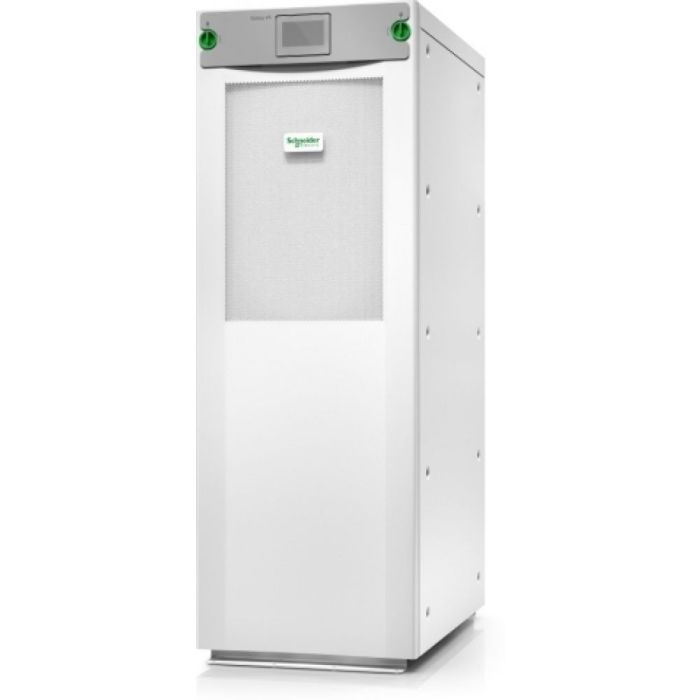

Schneider Electric Galaxy VS GVSUPS30KRHS - UPS
380400415 Volt wisselstroom V - 30 kW - 30000 VA - 3-fase - geen batterij - Ethernet 101001000 - glanzend wit, RAL 9003 - met Start-Up Service 5X8
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 6156876
20.067,85
Incl. 21% BTW
16.585,-
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
Raalte:
Niet voorradig
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving
APC GVSUPS30KRHS. UPS-topologie: Dubbele conversie (online), Output power capacity: 30 kVA, Uitgangsvermogen: 30000 W. Vormfactor: Tower, Kleur van het product: Wit, Type beeldscherm: LCD. Certificaten van naleving: RoHS, Certificering: EN/IEC 62040-1, EN/IEC 62040-2, FCC 15 A, IEC 60721-4-2 2M2, UL 1778 5. Breedte: 521 mm, Diepte: 847 mm, Hoogte: 1485 mm
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0731304418276 |
| Fabrikantcode | GVSUPS30KRHS |
| Artikelnummer | 6156876 |
| Merk | APC |
| Link naar fabrikant |
Kenmerken |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 30 kVA |
| Uitgangsvermogen | 30000 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 340 V |
| Ingang operation voltage (max) | 460 V |
| Frequentie | 40 - 70 Hz |
| Output frequentie | 50/60 Hz |
| Stroom (max.) | 54 A |
| Aantal input fases | 3 |
| Aantal output fases | 3 |
| Crest factor | 2.5:1 |
| Output voltage THD | 1 procent |
| Input stroom THD | 3 procent |
| Geluidsniveau | 68 dB |
| Stroomspanning bescherming | Kortsluiting,Overbelasting |
| Geluidsalarm(en) | Ja |
Design |
| Vormfactor | Tower |
| Kleur van het product | Wit |
| Type beeldscherm | LCD |
| Internationale veiligheidscode (IP) | IP21 |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
| Temperatuur bij opslag | -25 - 55 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 10 - 80 procent |
| Hoogte, in bedrijf | 0 - 1005,8 m |
Inhoud van de verpakking |
| Snelle installatiehandleiding | Ja |
Certificaten |
| Certificaten van naleving | RoHS |
| Certificering | EN/IEC 62040-1, EN/IEC 62040-2, FCC 15 A, IEC 60721-4-2 2M2, UL 1778 5 |
Gewicht en omvang |
| Breedte | 521 |
| Diepte | 847 mm |
| Hoogte | 1485 mm |
| Gewicht | 250000 g |
