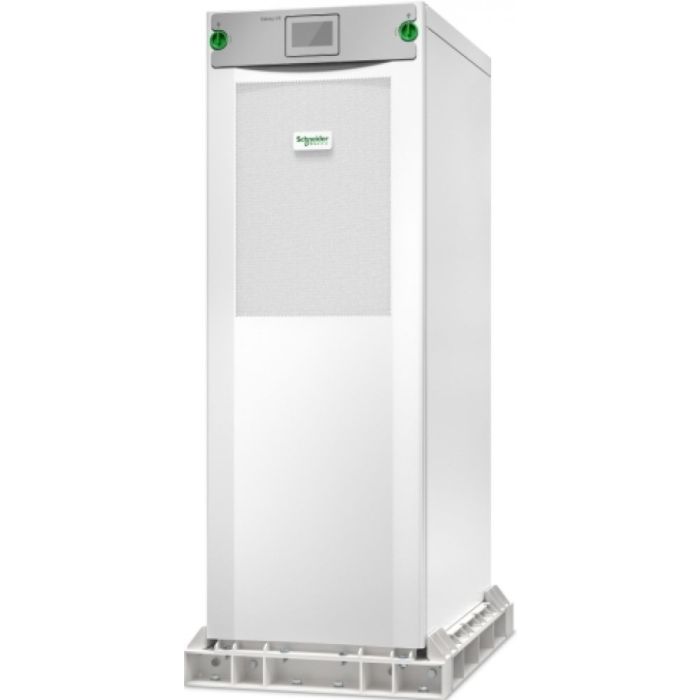

Schneider Electric Galaxy VS - UPS
halogeenvrije kabels, marien-gecertificeerd - 380400415 Volt wisselstroom V - 120 kW - 120000 VA - 3-fase - geen batterij - wit - met Start-Up Service 5X8
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 4955762
25.580,61
Incl. 21% BTW
21.141,-
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
429 Too Many Requests
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving
APC Galaxy VS. UPS-topologie: Dubbele conversie (online), Output power capacity: 120 kVA, Uitgangsvermogen: 120000 W. Batterijtechnologie: Lithium-Ion (Li-Ion), Accu/Batterij voltage: 576 V. Vormfactor: Tower, Kleur van het product: Wit, Type koeling: Actief. Certificering: EN/IEC 62040-1, EN/IEC 62040-2, FCC, IEC 60721-4-2, UL 1778. Breedte: 520 mm, Diepte: 847 mm, Hoogte: 1485 mm
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0731304418405 |
| Fabrikantcode | GVSUPS120KMHS |
| Artikelnummer | 4955762 |
| Merk | APC |
| Link naar fabrikant |
Kenmerken |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 120 kVA |
| Uitgangsvermogen | 120000 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 340 V |
| Ingang operation voltage (max) | 460 V |
| Frequentie | 40 - 70 Hz |
| Uitgang operation voltage (max) | 400 V |
| Output frequentie | 50/60 Hz |
| Stroom (max.) | 216 A |
| Aantal input fases | 3 |
| Aantal output fases | 3 |
| Crest factor | 2.5:1 |
| ECO mode | Ja |
| Output voltage THD | 1 procent |
| Input stroom THD | 3 procent |
| Geluidsniveau | 68 dB |
| Geluidsalarm(en) | Ja |
Accu/Batterij |
| Batterijtechnologie | Lithium-Ion (Li-Ion) |
| Accu/Batterij voltage | 576 V |
Design |
| Vormfactor | Tower |
| Kleur van het product | Wit |
| Type koeling | Actief |
| Ingebouwde ventilator | Ja |
| Soort bediening | Touch |
| Type beeldscherm | LCD |
| Internationale veiligheidscode (IP) | IP21 |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
| Temperatuur bij opslag | -25 - 55 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 10 - 80 procent |
| Hoogte, in bedrijf | 0 - 1005,8 m |
Inhoud van de verpakking |
| Snelle installatiehandleiding | Ja |
Certificaten |
| Certificering | EN/IEC 62040-1, EN/IEC 62040-2, FCC, IEC 60721-4-2, UL 1778 |
Gewicht en omvang |
| Breedte | 520 |
| Diepte | 847 mm |
| Hoogte | 1485 mm |
| Gewicht | 290000 g |
Verpakking |
| Breedte verpakking | 640 mm |
| Diepte verpakking | 990 mm |
| Hoogte verpakking | 1680 mm |
| Gewicht verpakking | 325000 g |
| Type verpakking | Doos |
