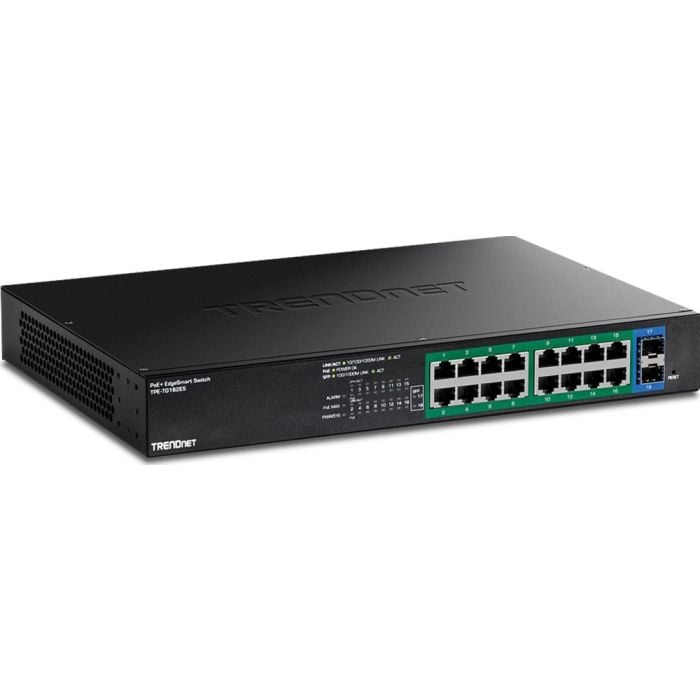

TRENDnet 18-Port Gigabit EdgeSmart PoE+ Switch
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 8593418
249,10
Incl. 21% BTW
205,87
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
2-3 werkdagen
Raalte:
Niet voorradig
Leverancier:
3 stuk(s) voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving
Trendnet TPE-TG182ES. Switch type: Managed. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 16. Full duplex. MAC-adrestabel: 8000 entries, Switchingcapaciteit: 36 Gbit/s. Netwerkstandaard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE.... Power over Ethernet (PoE). Rack-montage
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0710931162561 |
| Fabrikantcode | TPE-TG182ES |
| Artikelnummer | 8593418 |
| Merk | TRENDNET |
| Link naar fabrikant |
Beheerfuncties |
| Switch type | Managed |
Poorten & interfaces |
| Aantal basis-switching RJ-45 Ethernet-poorten | 16 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal Gigabit Ethernet (koper)-poorten | 16 |
| Aantal moduleslots SPF | 2 |
Netwerk |
| Netwerkstandaard | IEEE 802.3,IEEE 802.3u,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p,IEEE 802.3az,IEEE 802.3at,IEEE 802.3af,IEEE 802.1D,IEEE 802.1w |
| 10G support | Nee |
| Full duplex | Ja |
| Half-duplex | Ja |
| Spanning tree protocol | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Virtuele LAN-functies | Tagged VLAN,Private VLAN,Voice VLAN |
| Aantal VLANs | 4094 |
Data-uitwisseling |
| MAC-adrestabel | 8000 entries |
| Switchingcapaciteit | 36 Gbit/s |
| Verzending snelheid | 26.78 Mpps |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9000 |
| Packet buffergeheugen | 0.5 MB |
Beveiliging |
| IGMP snooping | Ja |
Multicast-functies |
| Multicast-ondersteuning | Ja |
Protocollen |
| Beheerprotocollen | SNMP v1, v2c |
Design |
| Rack-montage | Ja |
| Kleur van het product | Zwart |
| Aantal ventilatoren | 1 ventilator(en) |
Prestatie |
| Geluidsniveau | 47 dB |
| Mean time between failures (MTBF) | 609351 uur |
Energie |
| Stroombron | AC/PoE |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Stroom | 2.6 A |
| Vermogensverbruik (max) | 248.18 W |
Power over Ethernet (PoE) |
| Totaal Power over Ethernet (PoE)-budget | 240 W |
| Power over Ethernet (PoE) | Ja |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Aantal Power over Ethernet plus (PoE +)-poorten | 16 |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Gewicht en omvang |
| Breedte | 328 |
| Diepte | 228 mm |
| Hoogte | 44 mm |
| Gewicht | 2580 g |
Certificaten |
| Certificering | CE FCC ETL |
