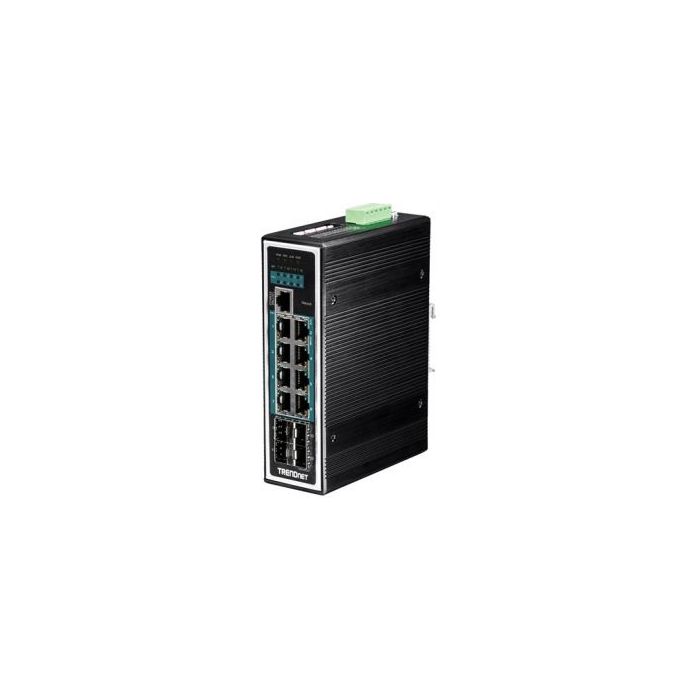

TRENDnet TI-PG1284I - Switch
L2+ - Beheerd - 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - monteerbaar op DIN-rails - PoE+ (240 W)
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 2434912
668,48
Incl. 21% BTW
552,46
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
2-3 werkdagen
429 Too Many Requests
Leverancier:
6 stuk(s) voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0710931160598 |
| Fabrikantcode | TI-PG1284I |
| Artikelnummer | 2434912 |
| Merk | TRENDNET |
| Link naar fabrikant |
Beheerfuncties |
| Switch type | Managed |
| Switch-laag | L2+ |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| ARP-inspectie | Ja |
| System event log | Ja |
| MIB-ondersteuning | RFC 1213, RFC 1493, RFC 1643, RFC 1757 |
Poorten & interfaces |
| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF | 4 |
| Console port | RJ-45 |
Netwerk |
| Netwerkstandaard | IEEE 802.3u,IEEE 802.3,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p,IEEE 802.3at,IEEE 802.1D,IEEE 802.1w,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1ab |
| 10G support | Nee |
| Port mirroring | Ja |
| Full duplex | Ja |
| Spanning tree protocol | Ja |
| Verbindingsaggregatie | Ja |
| MAC-adres zelflerende functie | Ja |
| Broadcast stormbeheer | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Tagged VLAN,Protocol-based VLAN |
| Aantal VLANs | 256 |
Data-uitwisseling |
| MAC-adrestabel | 16000 entries |
| Switchingcapaciteit | 24 Gbit/s |
| Throughput | 17.86 Mpps |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 10000 |
| Packet buffergeheugen | 128 MB |
Beveiliging |
| DHCP-functies | DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | SNMP,HTTPS,802.1x RADIUS |
| Authenticatie | Poortgebaseerde authenticatie |
| Bescherming lus | Ja |
Multicast-functies |
| Multicast-ondersteuning | Ja |
| Multicast MAC adrestabel | 256 entries |
Design |
| Rack-montage | Nee |
| Kleur van het product | Zwart |
| LED-indicatoren | Ja |
| DIN rail bevestiging | Ja |
| Internationale veiligheidscode (IP) | IP30 |
Prestatie |
| Mean time between failures (MTBF) | 322805 uur |
Energie |
| Redundante voeding | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Spanning | 48 V |
| Output current | 5 A |
| Vermogensverbruik (max) | 260 W |
Power over Ethernet (PoE) |
| Totaal Power over Ethernet (PoE)-budget | 240 W |
| Power over Ethernet (PoE) | Ja |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Aantal Power over Ethernet plus (PoE +)-poorten | 8 |
Overige specificaties |
| Klemmenblokpoort | Ja |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | -40 - 70 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
Gewicht en omvang |
| Breedte | 170 |
| Diepte | 132 mm |
| Hoogte | 50 mm |
| Gewicht | 920 g |
Inhoud van de verpakking |
| Snelstartgids | Ja |
Verpakking |
| Klemmenblok inclusief | Ja |
| Ondersteunings-cd | Ja |
Certificaten |
| Certificering | CE, FCC |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85176990 |
