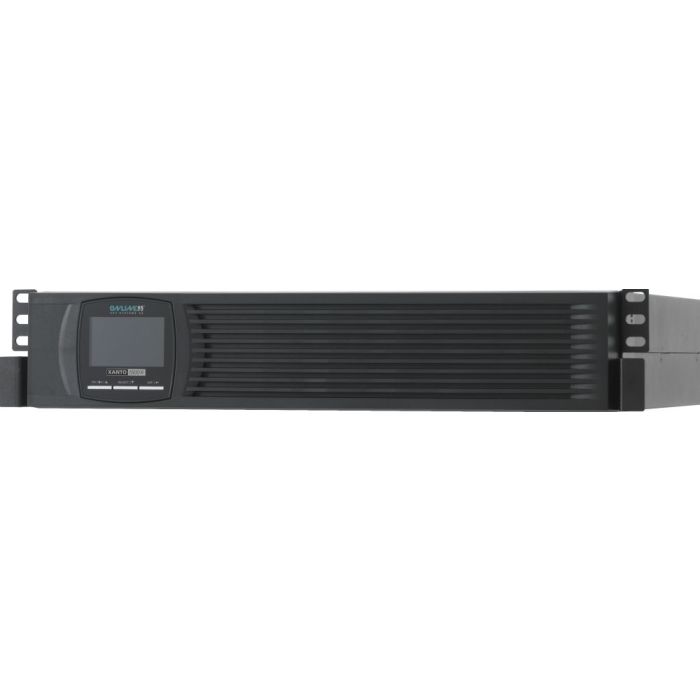

USV Online XANTO R 1500VA X1500R 1500VA / 1500W,LCD, USB, SNMP, RS232,silent,2U,19"
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 4804422
1.225,26
Incl. 21% BTW
1.012,61
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
2-3 werkdagen
429 Too Many Requests
Leverancier:
17 stuk(s) voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving
ONLINE USV-Systeme XANTO 1500R. UPS-topologie: Dubbele conversie (online), Output power capacity: 1,5 kVA, Uitgangsvermogen: 1500 W. Stopcontacttypes: C13 stekker, Stekker: C14 stekker, Aantal AC uitgangen: 4 AC-uitgang(en). Batterij capaciteit: 9 Ah, Accu/Batterij voltage: 12 V, Typische backup tijd op volledige lading: 6 min. Vormfactor: Rackmontage/toren, Kleur van het product: Zwart, Rackcapaciteit: 2U. Certificering: VFI-SS-111 (EN62040-3) EN62040-1 EN62040-2 CE
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 4026908003833 |
| Fabrikantcode | X1500R |
| Artikelnummer | 4804422 |
| Merk | ONLINE USV |
| Link naar fabrikant |
Kenmerken |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 1.5 kVA |
| Uitgangsvermogen | 1500 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 110 V |
| Ingang operation voltage (max) | 300 V |
| Frequentie | 50/60 Hz |
| Uitgang operation voltage (min) | 208 V |
| Uitgang operation voltage (max) | 240 V |
| Output frequentie | 50/60 Hz |
| Stroom (max.) | 11 A |
| Efficientie | 97 procent |
| Emergency Power Off (EPO) | Ja |
| Geluidsniveau | 50 dB |
| Golf protectie functies | Faxen,Modem,Netwerk |
| Geluidsalarm(en) | Ja |
| Hoorbare alarmstanden | Alarm bij laag batterijniveau, Alarm bij overbelasting |
| Beheerprotocollen | SNMP |
Poorten & interfaces |
| Stopcontacttypes | C13 stekker |
| Stekker | C14 stekker |
| Aantal AC uitgangen | 4 AC-uitgang(en) |
| USB-poort | Ja |
| Aantal USB 2.0-poorten | 1 |
| Seriële interface | Ja |
| Soort serieële aansluiting | RS-232 |
| RS-232 port | 1 |
| Seriële poort(en) | 1 |
Accu/Batterij |
| Batterij capaciteit | 9 Ah |
| Accu/Batterij voltage | 12 V |
| Ondersteund aantal accu's/batterijen | 3 |
| Typische backup tijd op volledige lading | 6 min |
| Typische backup tijd op halve lading | 15 min |
| Koude start | Ja |
Design |
| Vormfactor | Rackmontage/toren |
| Kleur van het product | Zwart |
| Rackcapaciteit | 2U |
| Type koeling | Actief |
| Type beeldscherm | LCD |
| Internationale veiligheidscode (IP) | IP20 |
| Mean time between failures (MTBF) | 50000 uur |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 90 procent |
Inhoud van de verpakking |
| Meegeleverde kabels | Stroombelastingskabel, USB-kabel |
Certificaten |
| Certificering | VFI-SS-111 (EN62040-3) EN62040-1 EN62040-2 CE |
Gewicht en omvang |
| Breedte | 438 |
| Diepte | 412 mm |
| Hoogte | 88 mm |
| Gewicht | 15500 g |
Verpakking |
| Type verpakking | Doos |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85078000 |
