VFI 20000 CPR 3/1 BI UPS 20000VA/18000W
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 3816656
4.712,41
Incl. 21% BTW
3.894,55
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
Raalte:
Niet voorradig
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving

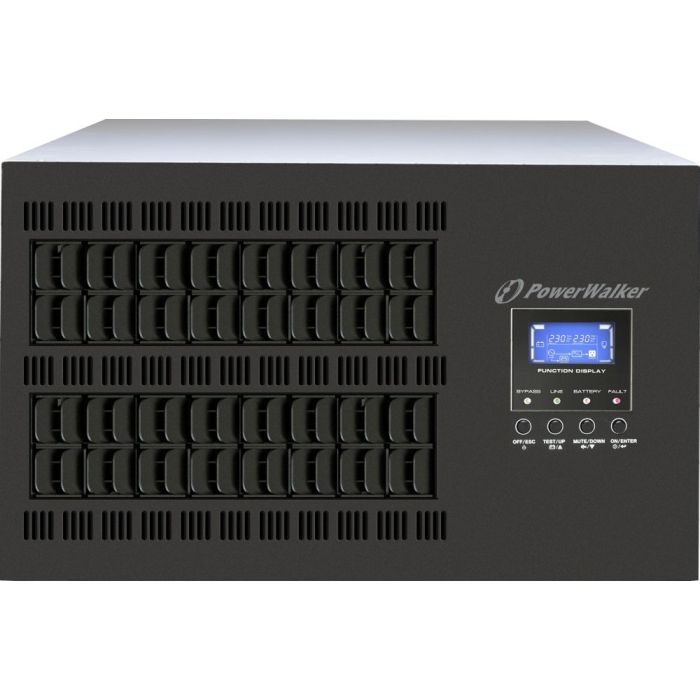

PowerWalker VFI 20000 CPR 3/1. UPS-topologie: Dubbele conversie (online), Output power capacity: 20 kVA, Uitgangsvermogen: 18000 W. Stopcontacttypes: Eindstation, Stekker: Eindstation, Aantal AC uitgangen: 1 AC-uitgang(en). Batterij capaciteit: 9 Ah, Accu/Batterij voltage: 12 V, Accu/Batterij oplaadtijd: 9 uur. Vormfactor: Rackmontage, Kleur van het product: Zwart, Grijs, Type koeling: Actief. Breedte: 438 mm, Diepte: 668 mm, Hoogte: 266 mm
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 4260074978698 |
| Fabrikantcode | 10122052 |
| Artikelnummer | 3816656 |
| Merk | POWERWALKER |
| Link naar fabrikant |
Kenmerken |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 20 kVA |
| Uitgangsvermogen | 18000 W |
| Ingang operation voltage (min) | 176 V |
| Ingang operation voltage (max) | 300 V |
| Frequentie | 46/64 Hz |
| Uitgang operation voltage (min) | 208 V |
| Uitgang operation voltage (max) | 240 V |
| Uitgangsfrequentieregeling | -0.1 - 0.1 Hz |
| Uitgangsspanningsregeling | -1 - 1 procent |
| Contacttijd (max) | 0 ms |
| Responstijd | 0 ms |
| Aantal input fases | 3 |
| Efficientie | 91 procent |
| Input vermogensfactor | 0.99 |
| Output vermogensfactor | 0.9 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Ja |
| Geluidsniveau | 65 dB |
Poorten & interfaces |
| Stopcontacttypes | Eindstation |
| Stekker | Eindstation |
| Aantal AC uitgangen | 1 AC-uitgang(en) |
| Aantal USB 2.0-poorten | 1 |
| RS-232 port | 1 |
| Noodstop-aansluiting (EPO) | Ja |
Accu/Batterij |
| Batterij capaciteit | 9 Ah |
| Accu/Batterij voltage | 12 V |
| Ondersteund aantal accu's/batterijen | 22 |
| Accu/Batterij oplaadtijd | 9 uur |
| Laadstroom | 4 A |
Design |
| Vormfactor | Rackmontage |
| Kleur van het product | Zwart, Grijs |
| Type koeling | Actief |
| Type beeldscherm | LCD |
| LED-indicatoren | Ja |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
Gewicht en omvang |
| Breedte | 438 |
| Diepte | 668 mm |
| Hoogte | 266 mm |
| Gewicht | 45000 g |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85078000 |
Overige specificaties |
| Aansluitingen | Intelligent Slot Terminal In Terminal Out External Battery Connection |
