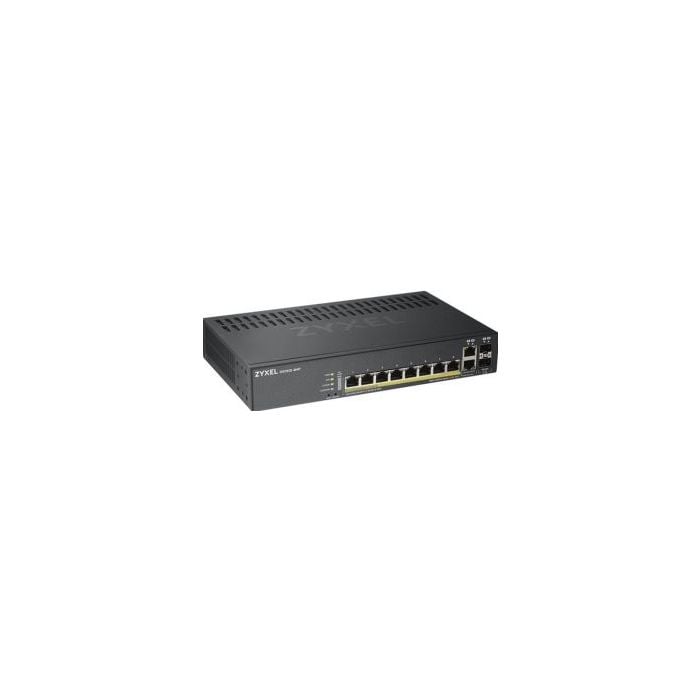

Zyxel GS1920-8HPv2 - Switch
intelligent - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP-combinatie - desktop, wandbevestiging - PoE+ (130 W)
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 3668579
209,33
Incl. 21% BTW
173,-
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
2-3 werkdagen
Raalte:
Niet voorradig
Leverancier:
45 stuk(s) voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving
De GS1920-serie is ideaal voor MKB-implementatie in meerdere scenario's, met zijn unieke poortcombinaties die uw netwerk toekomstbestendig maken om een gemakkelijke groei op de weg te garanderen.
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 4718937602230 |
| Fabrikantcode | GS1920-8HPV2-EU0101F |
| Artikelnummer | 3668579 |
| Merk | ZYXEL |
| Link naar fabrikant | |
| Campagne | Geen |
Beheerfuncties |
| Switch type | Managed |
| Quality of Service (QoS) | Ja |
| ARP-inspectie | Ja |
| System event log | Ja |
| MIB-ondersteuning | RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
Poorten & interfaces |
| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal Combo SFP-poorten | 2 |
| Vezel-optische connector | SFP |
Netwerk |
| Netwerkstandaard | IEEE 802.3u,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p,IEEE 802.1x,IEEE 802.3at,IEEE 802.3af,IEEE 802.1D,IEEE 802.1w,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1ab |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 1000BASE-T,100BASE-TX |
| Datastroombeheer | Ja |
| Spanning tree protocol | Ja |
| Rate limiting | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Private VLAN,Voice VLAN,IP subnet–based VLAN,MAC address-based VLAN,Protocol-based VLAN,Port-based VLAN |
Optische vezel |
| Fiber ethernet cabling technologie | 1000BASE-X |
Data-uitwisseling |
| MAC-adrestabel | 16000 entries |
| Switchingcapaciteit | 20 Gbit/s |
| Verzending snelheid | 15 Mpps |
| Packet buffergeheugen | 1.5 MB |
Beveiliging |
| DHCP-functies | DHCP client,DHCP relay,DHCP snooping,DHCPv6 relay |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| CPU-bescherming | Ja |
| IP-MAC-Port binding | Ja |
| Algoritmen wachtrijplanning | SPQ,Weighted Round Robin (WRR),WFQ |
| Ondersteunde beveiligingsalgoritmen | SNMPv3,SNMP,802.1x RADIUS |
| MAC adres filtering | Ja |
| Authenticatie | Gast-VLAN, Poortgebaseerde authenticatie |
| Wachtwoordbeveiliging | Ja |
| Authenticatie type | IEEE 802.1x, RADIUS |
Multicast-functies |
| Multicast-ondersteuning | Ja |
Design |
| Rack-montage | Nee |
| Kleur van het product | Zwart |
| LED-indicatoren | Ja |
| Ophangsysteem voor aan de muur | Ja |
| Veiligheid | LVD, BSMI |
| Elektromagnetische compatibiliteit | FCC 15 A, CE A, BSMI EMC |
Prestatie |
| Intern geheugen | 256 |
| Flash memory | 32 MB |
| Geluidsniveau | 0 dB |
| Mean time between failures (MTBF) | 513985 uur |
Energie |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Vermogensverbruik (max) | 161.8 W |
Power over Ethernet (PoE) |
| Totaal Power over Ethernet (PoE)-budget | 130 W |
| Power over Ethernet (PoE) | Ja |
| Hoeveelheid Power over Ethernet (PoE) ports | 8 |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 50 °C |
| Temperatuur bij opslag | -40 - 70 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 95 procent |
| Luchtvochtigheid bij opslag | 10 - 95 procent |
| Warmtedissipatie | 551.74 BTU/h |
Gewicht en omvang |
| Breedte | 267 |
| Diepte | 162 mm |
| Hoogte | 44 mm |
| Gewicht | 1900 g |
Inhoud van de verpakking |
| Meegeleverde kabels | AC |
Verpakking |
| Breedte verpakking | 375 mm |
| Diepte verpakking | 235 mm |
| Hoogte verpakking | 61 mm |
| Gewicht verpakking | 2730 g |
Certificaten |
| Certificering | RoHS |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 85176990 |
