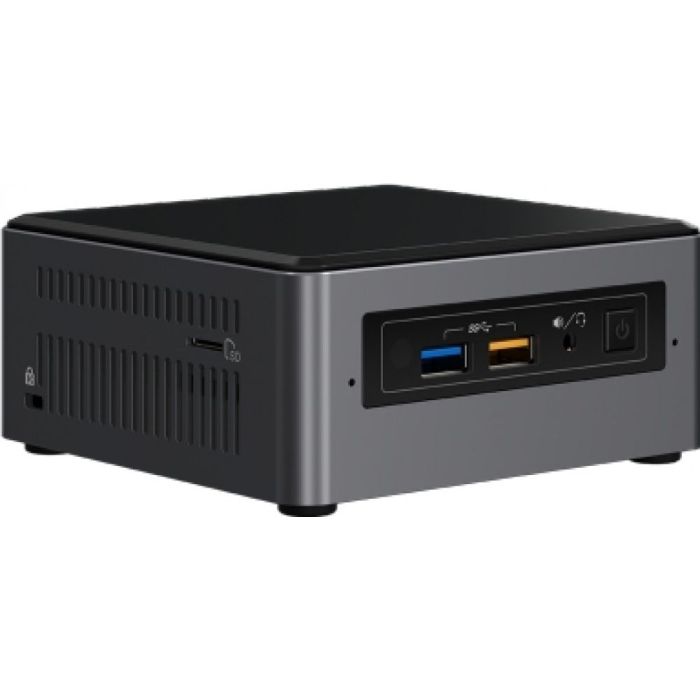

Intel NUC7I7BNH - Barebone
mini-PC - 1 x Core i7 7567U - Intel Iris graphics 650 - GigE - WLAN: 802.11a/b/g/n/ac
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 2552140
0,-
Incl. 21% BTW
0,-
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
Raalte:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Plus- en minpunten
- De Intel Core i7 processor is krachtig genoeg voor de meest veeleisende programma's.
- Deze NUC beschikt over een M.2B connector voor SATA of PCIe SSDs.
- Door het compacte formaat is de mini pc gemakkelijk ergens te plaatsen.
- Deze barebone mist nog enkele kernonderdelen, zoals werkgeheugen, harde schijven en een besturingssysteem.
- De shared videokaart is niet geschikt voor het spelen van nieuwe games op hoge instellingen.
Productomschrijving
De NUC Kit NUC7i7BNH van Intel is een kleine Barebone, op basis van een Intel Core i7-7567U Processor en Intel HD Graphics 650 grafische chip. Door het geringe formaat en de VESA mount kit, is de NUC Kit gemakkelijk achter op een monitor te plaatsen. Ook kan deze barebone gemakkelijk op je bureau worden geplaatst.
Productspecificaties
Algemeen |
|
|---|---|
| Merk | INTEL |
| Artikelnummer | 2552140 |
| Fabrikantcode | BOXNUC7I7BNH |
| EAN | 5032037088718 |
Processor |
| Processorfabrikant | Intel |
| Processorfamilie | Intel® Core™ i7 |
| Processorgeneratie | Zevende generatie Intel® Core™ i7 |
| Processormodel | i7-7567U |
| Aantal processorkernen | 2 |
| Processor aantal threads | 4 |
| Maximale turbofrequentie van processor | 4 GHz |
| Frequentie van processor | 3.5 GHz |
| Type processor | Ja |
| Processor lithografie | 14 nm |
| Processor cache | 4 MB |
| L3 cache | 4 MB |
| Thermal Design Power (TDP) | 28 W |
| Geheugenbandbreedte ondersteund door de processor ( max) | 34.1 GB/s |
| Codenaam processor | Kaby Lake |
| CPU configuratie (max) | 1 |
Geheugen |
| Geheugen slots type | SO-DIMM |
| Aantal geheugenslots | 2 |
| Aantal DIMM sloten | 2 |
| Maximum intern geheugen | 32 GB |
| Supported memory clock speeds | 2133 MHz |
| Ondersteunde geheugen types | DDR4-SDRAM |
| Geheugen kanaal | Dubbelkanaals |
| Geheugen bandbreedte (max) | 34.1 GB/s |
| Geheugen voltage | 1.2 V |
| Verwijderbare sleuf voor geheugenkaart | microSDXC with UHS-I support |
| ECC | Nee |
Opslagmedia |
| Ondersteunde types opslag-drives | HDD & SSD |
| Opslagschijf afmetingen ondersteund | M.2 ",2.5 " |
| SSD-vormfactor | M.2 |
| Opslag schijf-interface | M.2, PCI Express, SATA III |
| Aantal storage drives ondersteund | 2 |
| Maximale opslagcapaciteit | 2 TB |
| Soorten RAID | 0,1 |
| Geïntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSDXC |
Grafisch |
| Ingebouwde grafische adapter | Ja |
| Grafische adapter-familie | Intel |
| On-board graphics adapter model | Intel® Iris™ Plus Graphics 650 |
| Maximum geheugen grafische adapter | 32000 MB |
| Aantal displays ondersteund | 3 |
Netwerk |
| Wifi-standaard | Wi-Fi 5 (802.11ac) |
| Wi-Fi-standaarden | Wi-Fi 5 (802.11ac) |
| WLAN-controller-model | Intel Dual Band Wireless-AC 8265 |
| Ethernet LAN | Ja |
| Wifi | Ja |
| LAN controller | Intel® I219-V |
| Bluetooth | Ja |
| Bluetooth-versie | 4.2 |
Poorten & interfaces |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.0a |
| Combo koptelefoon/microfoon port | Ja |
| Hoeveelheid Thunderbolt ports | 1 |
| Aantal SATA III connectors | 2 |
| USB-versie | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Aantal USB-aansluitingen | 6 |
| Aantal Thunderbolt 3-poorten | 1 |
| M.2-kaartsleuf (opslag) | 2242/2280 |
| Grafische uitvoer | HDMI 2.0a; USB-C (DP1.2) |
Uitbreidingsmodules |
| PCI Express slots versie | 3.0 |
| PCI Express x4 slots | 1 |
| PCI Express configuraties | 1x2,1x4,2x2,2x1,4x1 |
Design |
| Kleur van het product | Zwart |
| Type koeling | Passief |
| Aan/uitschakelaar | Ja |
| LED-indicatoren | Stroom |
| VESA-montage | Ja |
| Type product | Mini PC barebone |
| Status | Discontinued |
| ARK ID | 95065 |
| Productserie | Intel® NUC Kit with 7th Generation Intel® Core™ Processors |
| Productcodenaam | Baby Canyon |
| Certificering | ROHS, WEEE |
Prestatie |
| Moederbord form factor | UCFF |
| BIOS type | EEPROM |
| Grootte BIOS-geheugen | 64 Mbit |
| Trusted Platform Module (TPM) | Nee |
| Audio-uitgangskanalen | 7.1 kanalen |
| Ondersteunde RAID-configuratie | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Consumer infrared Rx-sensor | Ja |
| Compatibele besturingssystemen | Windows 10, 64-bit* |
| Inclusief besturingssysteem | Nee |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Code geharmoniseerd systeem (HS) | 84713000 |
| Export Control Classification Number (ECCN) | 5A992C |
Processor speciale functies |
| Intel® vPro™ Platform Eligibility | Nee |
| Intel® High Definition Audio (Intel® HD Audio) | Ja |
| Ingebouwde opties beschikbaar | Nee |
| Intel® Rapid Storage Technology | Ja |
| Intel® AES New Instructions (Intel® AES-NI) | Ja |
| Intel® Quick Sync Video Technology | Ja |
| Intel® InTru™ 3D Technology | Ja |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Ja |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Intel® 64 | Ja |
| Intel® My WiFi Technology (Intel® MWT) | Ja |
| Idle States | Ja |
| Enhanced Intel SpeedStep Technology | Ja |
| Thermal Monitoring Technologies | Ja |
| Intel® Flex Memory Access | Ja |
| Intel® Identity Protection Technology (Intel® IPT) | Ja |
| Intel® Trusted Execution Technology | Nee |
| Execute Disable Bit | Ja |
| Intel® Smart Cache | Ja |
| Intel® Visual BIOS | Ja |
| Intel® Express BIOS-update | Ja |
| Intel® TSX-NI | Nee |
| Intel® Secure Key | Ja |
| Intel® Smart Response Technology | Ja |
| Intel® Stable Image Platform Program (SIPP) | Nee |
| Intel® OS Guard | Ja |
| Intel® Clear Video-technologie | Ja |
| Intel® Optane™ Memory Ready | Ja |
| Intel® Platform Trust Technology (Intel® PTT) | Ja |
| Intel® Virtualization Technology (VT-x) | Ja |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 84713000 |
Energie |
| Soort voeding | Externe AC-adapter |
| Netvoeding | 65 W |
| AC-adapter, uitgangsspanning | 19 V |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
| Temperatuur bij opslag | -20 - 60 °C |
Gewicht en omvang |
| Breedte | 115 mm |
| Diepte | 111 mm |
| Hoogte | 51 mm |
Inhoud van de verpakking |
| Inclusief AC-adapter | Ja |
| Snelstartgids | Ja |
| Processor inbegrepen | Intel® Core™ i7-7567U Processor (4M Cache, up to 4.00 GHz) |
Overige specificaties |
| Lanceringsdatum | Q1'17 |
| Extra headers | CEC, 2x USB2.0, FRONT_PANEL |
| Aantal SATA-aansluitingen | 2 |
| HDD omvang | 2.5 " |
| DC voltage input | 12 - 19 V |
| ARK ID processor | 97541 |
