P15WL01-i5 Blue
Navigeren door de galerijafbeeldingen is mogelijk met de linker- en rechterpijltjestoetsen.
calcActive())">
Artikelnummer: 6888457
1.040,32
Incl. 21% BTW
859,77
Excl. 21% BTW
Excl. BTW:
Toevoegen aan
10+ werkdagen
Raalte:
Niet voorradig
Leverancier:
Niet voorradig
Productspecificaties
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2Â jaar garantie
- Gratis retour bij defect binnen de garantie*
- Particulier minimaal 2 jaar garantie
Productomschrijving

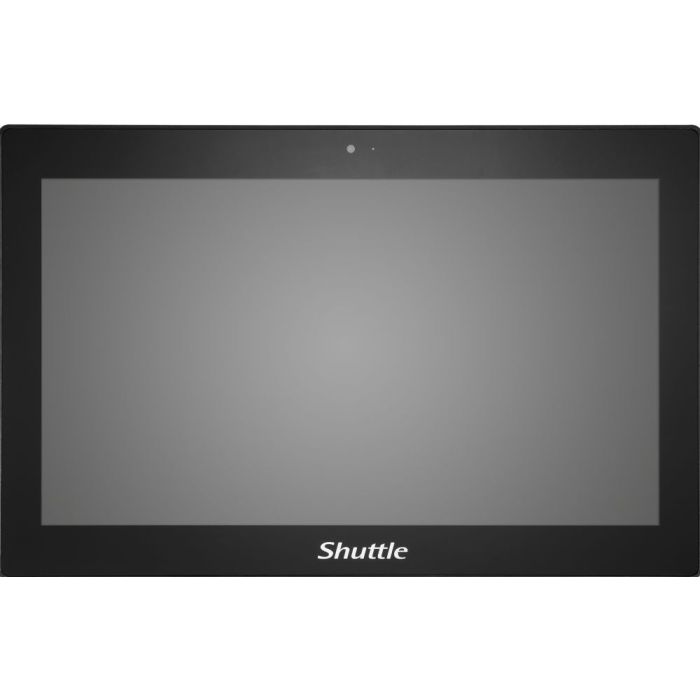

Shuttle All-In-One Panel PC Barebone P15WL01-i5 blauw, 15.6" Multi-Touch-Screen, i5-8365UE, 2xLAN, IP65, ventilatorloos , 24/7 permanent gebruik. Type behuizing: Alles-in-een, Type product: All-in-One PC barebone. Chipset moederbord: Intel SoC, BIOS type: UEFI AMI. Ondersteunde geheugen types: DDR4-SDRAM, Aantal geheugenslots: 2, Maximum intern geheugen: 64 GB. Ondersteunde types opslag-drives: SSD, Opslag schijf-interface: M.2, SATA. Aantal Ethernet LAN (RJ-45)-poorten: 2. Wi-Fi-standaarden: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Bluetooth-versie: 4.2. Type koeling: Passief. Netvoeding: 90 W
Productspecificaties
Algemeen |
|
|---|---|
| EAN | 0887993006260 |
| Fabrikantcode | P15WL01-I5 BLUE |
| Artikelnummer | 6888457 |
| Merk | SHUTTLE |
| Link naar fabrikant |
Processor |
| Type processor | Ja |
| Processorfabrikant | Intel |
| Processorfamilie | Intel® Core™ i5 |
| Processorgeneratie | Intel® 8de generatie Core™ i5 |
| Processormodel | i5-8365UE |
| Aantal processorkernen | 4 |
| Processor aantal threads | 16 |
| Frequentie van processor | 1.6 GHz |
| Processor lithografie | 14 nm |
| Processor cache | 6 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuratie (max) | 1 |
Geheugen |
| Geheugen slots type | SO-DIMM |
| Aantal geheugenslots | 2 |
| Supported memory clock speeds | 2400 MHz |
| Geheugen voltage | 1.2 V |
| Maximum intern geheugen | 64 GB |
| Ondersteunde geheugen types | DDR4-SDRAM |
| Geheugen kanaal | Dubbelkanaals |
| Non-ECC | Ja |
Opslagmedia |
| Ondersteunde types opslag-drives | SSD |
| Opslagschijf afmetingen ondersteund | M.2 " |
| SSD-vormfactor | M.2 |
| Opslag schijf-interface | M.2, SATA |
| NVMe | Ja |
Grafisch |
| Ingebouwde grafische adapter | Ja |
| Grafische adapter-familie | Intel |
| On-board graphics adapter model | Intel® UHD Graphics 620 |
Beeldscherm |
| Beeldschermdiagonaal | 15.6 " |
| Resolutie | 1920 x 1080 Pixels |
| Touchscreen | Ja |
| HD type | Full HD |
| Beeldverhouding | 16:9 |
| Helderheid | 350 cd/m2 |
| Soort paneel | TFT |
Netwerk |
| Ethernet LAN | Ja |
| Wifi | Ja |
| Wifi-standaard | Wi-Fi 5 (802.11ac) |
| Wi-Fi-standaarden | 802.11b,Wi-Fi 4 (802.11n),802.11g,Wi-Fi 5 (802.11ac) |
| WLAN-controller-model | Realtek RTL8821CE |
| LAN controller | Intel® I211,Intel® I219-LM |
| Bluetooth-versie | 4.2 |
| Bluetooth | Ja |
Poorten & interfaces |
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 1.4b |
| VGA (D-Sub)poort(en) | 1 |
| Microfoon, line-in ingang | Ja |
| Hoofdtelefoonuitgangen | 1 |
| Seriële poort(en) | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Aansluiting voor netstroomadapter | Ja |
Design |
| Type behuizing | Alles-in-een |
| Kleur van het product | Zwart, Blauw |
| Type koeling | Passief |
| Aan/uitschakelaar | Ja |
| LED-indicatoren | Ja |
| Materiaal behuizing | Aluminium |
| VESA-montage | Ja |
| Paneelmontage-interface | 100 x 100 mm |
| Type product | All-in-One PC barebone |
| Veiligheid | CB, cTUVus, BSMI |
Prestatie |
| Chipset moederbord | Intel SoC |
| Aantal ondersteunde processoren | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Ja |
| Trusted Platform Module (TPM) version | 2.0 |
Technische details |
| Certificaten van naleving | CE,Federal Communications Commission (FCC),BSMI |
Duurzaamheid |
| Naleving van duurzaamheid | Ja |
Software |
| Ondersteunt Windows | Windows 10,Windows 11 |
| Ondersteunt Linux | Ja |
| Inclusief besturingssysteem | Nee |
Logistieke gegevens |
| Code geharmoniseerd systeem (HS) | 84714900 |
Energie |
| Soort voeding | Externe AC-adapter |
| AC-ingangsfrequentie | 50/60 Hz |
| AC-adapter, uitgangsstroom | 4.74 A |
| AC-ingangsspanning | 100 - 240 V |
| AC-adapter, uitgangsspanning | 19 V |
| Aantal voedingen | 1 |
| Netvoeding | 90 W |
Eisen aan de omgeving |
| Bedrijfstemperatuur (T-T) | 0 - 40 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 80 procent |
| Temperatuur bij opslag | -20 - 60 °C |
Gewicht en omvang |
| Breedte | 394.3 |
| Diepte | 48.9 mm |
| Hoogte | 256.2 mm |
| Gewicht | 4600 g |
Inhoud van de verpakking |
| Inclusief AC-adapter | Ja |
